Linear floor drains

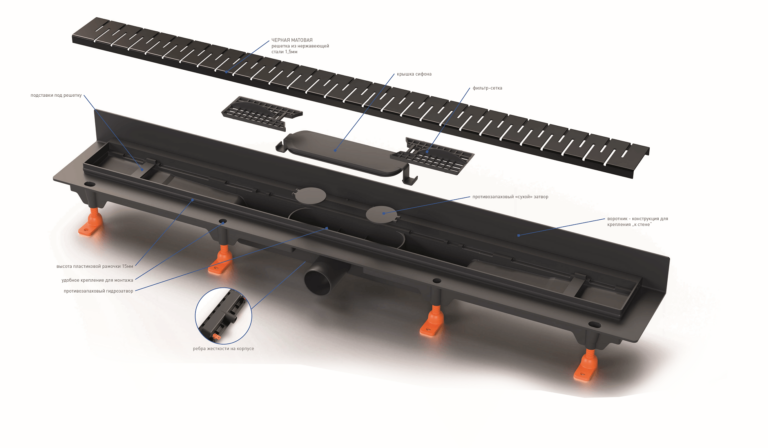

MCH shower element

A shower linear floor drain is a must for absolutely every bathroom. Due to its unique anti-odour design, low installation height, high flow rate and wide assortment of stainless steel grids, it meets requirements of demanding clients – and is an ideal solution for your bathroom.

The bottom part is made from polypropylene, the drain frame and the cover grid are made from stainless steel DIN 1.4301, allowing for a K3 load (up to 300 kg). The minimum installation height is 65mm, the drain is height-adjustable. To connect to sewage pipes Ø 40/50mm. The package includes a self-adhesive waterproofing membrane, adjustable spacers, nylon plugs, a plastic key to remove the stainless steel grid and the assembly instructions.

AQUARIUS

The new AQUARIUS stainless steel (AISI 316) linear floor drain protects your bathroom, thanks to modern technology, from undesirable water leaks. These drains are not welded but pressed, so water does not penetrate through trough drain body.

Part of the drain is a special ALU grid, on which it is possible to stick tiles, glass, marble or stainless steel and thanks to special longitudinal grooves on the upper side of the grid they are tightly fixed.

The lengths of the stainless steel drains are 700, 800 and 900 mm. Adjustable grid supports allow you to unite perfectly grid height with floor height. In case of uneven tiling, a stainless steel frame can be ordered, which will compensate for these unevennesses.

The linear floor drain has a very small building height 62 mm only, so it can be used to a limited building space height. The load capacity K3 / 300 kg.
