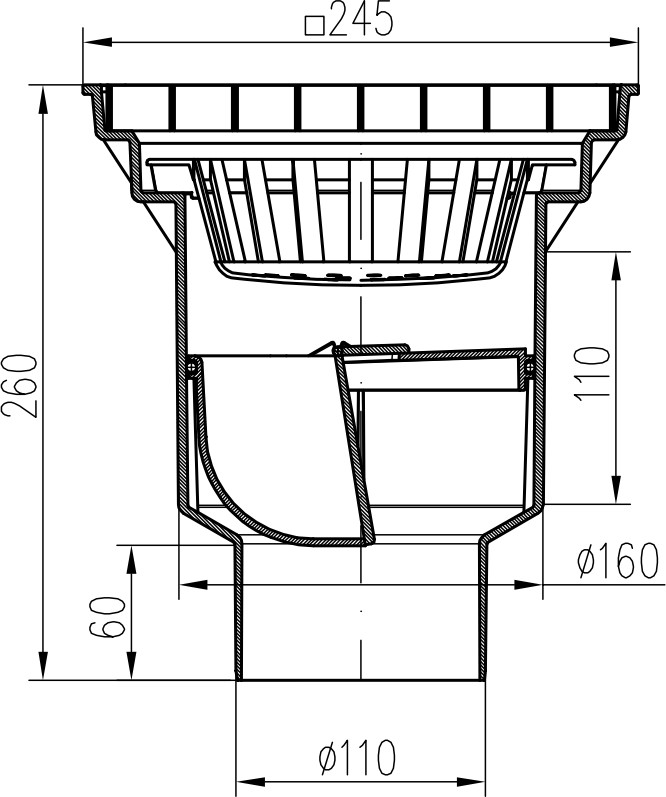

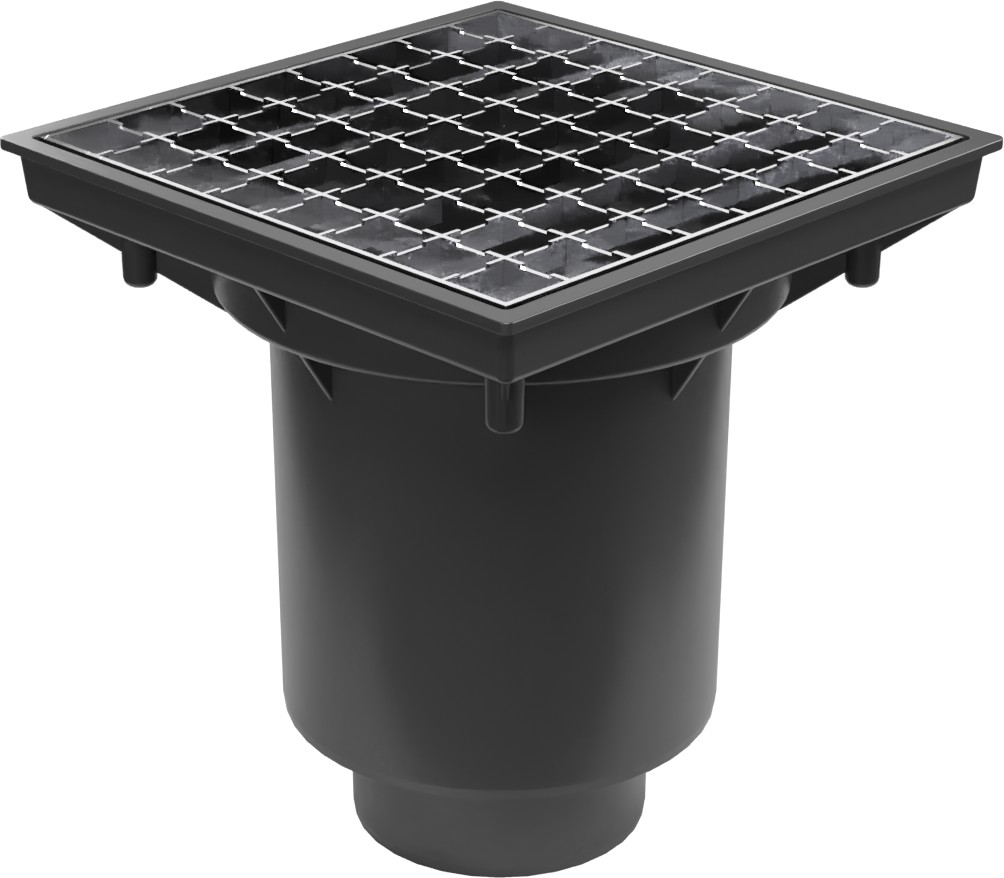

Street drain with bottom outlet D160/110, dry flap, stainless steel grate 250×250 mm

CHUDĚJ street drains are designed to drain rainwater and surface water from roads, pavements, car parks and other paved areas into the sewer system. They help protect property and infrastructure from damage caused by excessive water accumulation.

They are available with cast iron, stainless steel or plastic grates. A removable basket for collecting debris is included. D160/110 drains are equipped with a dry anti-odour flap that prevents backflow of odours from the sewer. They are designed for outdoor use. Temperature resistance: up to 90 °C. Flow rate: 280 l/min.

The drain body is made of UV-stabilised polypropylene. The grate is made of DIN 1.4301 (AISI 304) stainless steel. Its anti-slip design, durable material and timeless appearance make it suitable for areas where high standards of safety, durability and aesthetics are required. The open design of the grate reduces splashback, helping protect the façade and surrounding surfaces from dirt. Load class K3 – 300 kg. The drains are marked with the Czech conformity mark CCZ.
