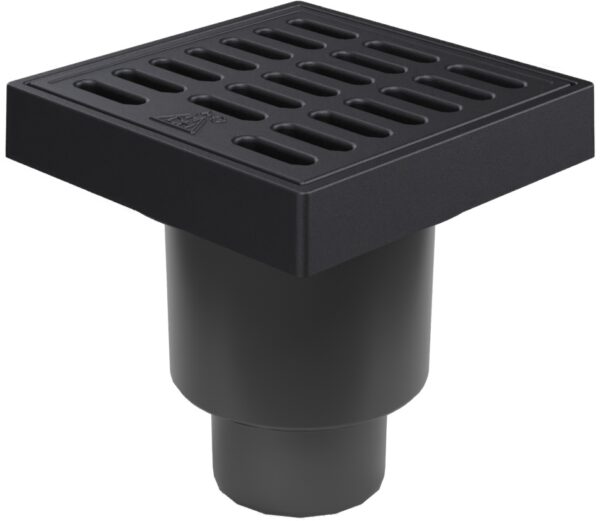

Bottom street drain, outlet D160/D110-250 dry flap, cast iron frame, grid SPACE

View in BIM catalogue

Order No.: M 3281

EAN: 8595587446652

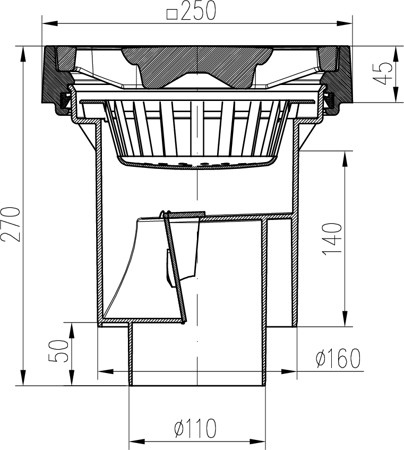

Parameters

Length
250 mm
Width
250 mm
Height
270 mm
Color
Black
Grid type
Litina
Material
cast iron, polypropylene, polystyrene
Outlet type
vertical
Outlet diameter
110, 160
Flow rate (l/min)
250
Outdoor use
Yes
