Clamp D 32 with clip (50 pieces)
Clips are used for fastening all types of pipes, including PPR, CU, PEX, and AL-PEX.
They are made of PP/PA material, with an opening, oval hole, or M6 thread.
Available in versions with clip, without bracket, and with bracket.
The installation temperature range is 5 – 90 °C.
• Easy installation
• Mounting solution through oval/round hole or M6 nut
• Possibility of fastening pipes up to D 110
• Low weight, very good strength
• Versions with clip, with bracket, and without bracket
• Suitable for all types of pipes: PPR, CU, PEX, AL-PEX
• Temperature resistance up to 90 °C
Order No.: 1K032P
EAN: 8595587405086

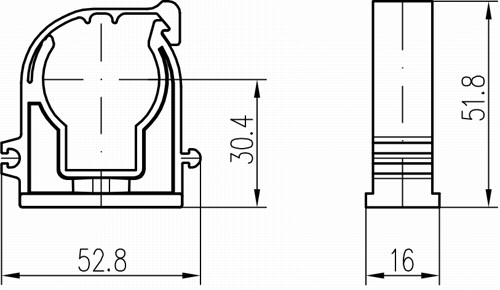

Parameters
- Length
- 52,8 mm
- Width
- 16 mm
- Height
- 51,8 mm
- Diameter
- 32 mm
- Load (kg)
- 300
