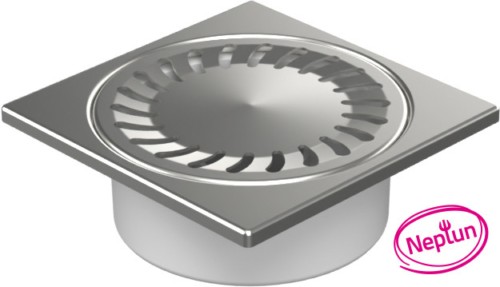

Floor drain with bottom outlet D50/82, NEPTUN, stainless steel frame, grid SUN
The floor drain is designed for indoor installations.
If the water level drops, the NEPTUNE float will close the outlet to prevent the back flow of odour from the sewage line.
Made of PP, PS and stainless steel DIN 1.4301.
Load capacity K3 (300 kg).
Temperature resistance up to 70°C.
Flow rate: 26 l/min

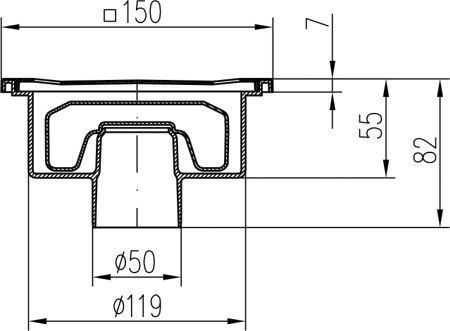

Parameters
- Length
- 150 mm
- Width
- 150 mm
- Height
- 82 mm
- Color
- nerez ocel
- Grid type
- SUN
- Material
- polypropylene, polystyrene, stainless steel
- Stainless frame
- Yes
- Outlet type
- vertical
- Outlet diameter
- 50
- Flow rate (l/min)
- 26
- Load class
- K3
- Load (kg)
- 300
