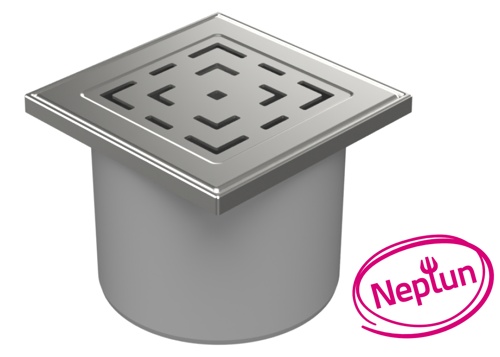

Floor drain with direct outlet D110, NEPTUN, stainless steel frame, grid LABYRINTH 5 mm

Floor drain with direct outlet D110, NEPTUN, stainless steel frame, grid LABYRINTH 5 mm

View in BIM catalogue

EAN: 8595587445464

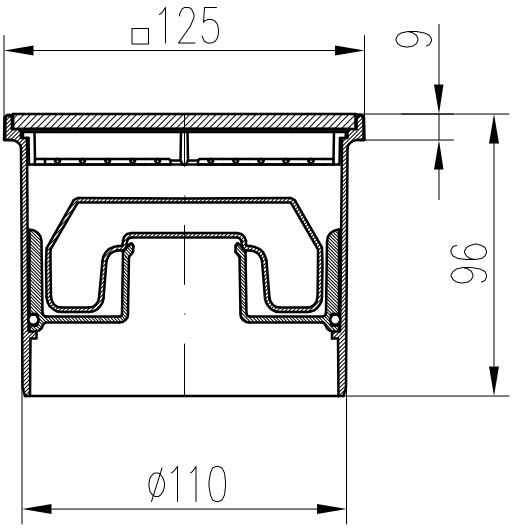

Parameters

Length: 125 mm
Width: 125 mm
Height: 96 mm
Frame height: 9 mm
Color: Gray
Grid type: LABYRINTH
Material: polypropylene, polystyrene, stainless steel
Stainless frame: Yes
Outlet type: vertical
Outlet diameter: 110
Flow rate (l/min): 30
Turnable waste connection: Yes
Load class: K3
Load (kg): 300

Download

Certificate FD_EN Download

Declaration of conformity FD EN Download

Product packaging

Quantity per box: 12

Quantity per palette: 648
