Direct floor drain D50, stainless steel frame, CERAMICS grate 150/1.5 mm
CHUDĚJ floor drains are designed primarily for piping systems inside buildings, where they ensure reliable drainage of wastewater into the public sewer system, a domestic wastewater treatment plant or a septic tank.
They are made of high-quality materials with high resistance to corrosion, mechanical stress and varying water temperatures. The drain body is made of polypropylene, while the frame and grate are made of DIN 1.4301 (AISI 304) stainless steel. Whether a stainless steel frame is included is specified in the product name.
The drain is not equipped with a siphon. It is equipped with a strainer for collecting debris and is designed for indoor use. Temperature resistance is up to 90 °C. The drain complies with load class K3 – 300 kg and is marked with the Czech conformity mark CCZ.
Order No.: C1 397
EAN: 8595587444658

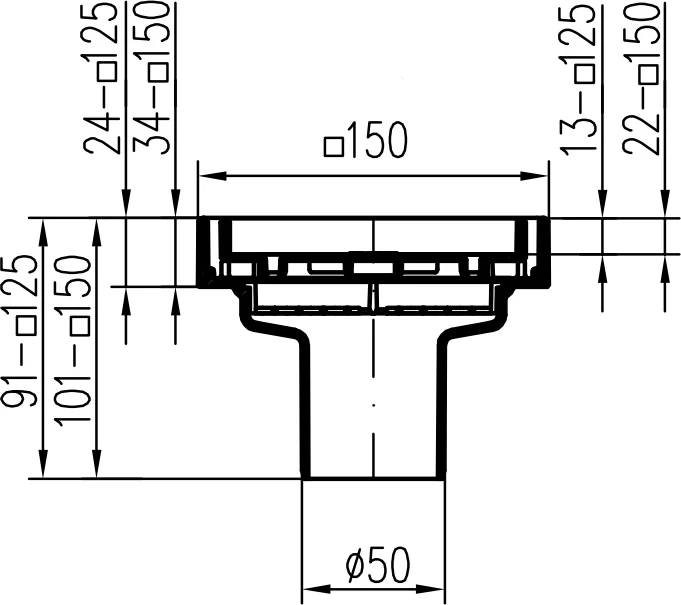

Parameters
- Length
- 150 mm
- Width
- 150 mm
- Height
- 101 mm
- Color
- Gray
- Grid type
- CERAMICS
- Material
- polystyrene, stainless steel
- Stainless frame
- Yes
- Outlet type
- vertical
- Outlet diameter
- 50
- Flow rate (l/min)
- 40
- Load class
- K3
- Load (kg)
- 300 kg
