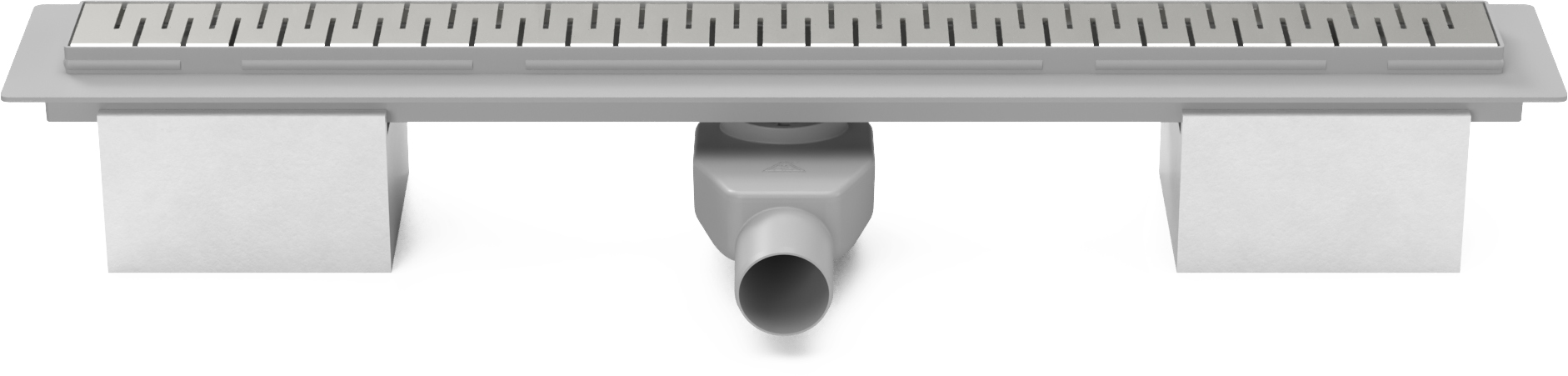

Linear floor drain 650 mm, swivel siphon D50, plastic frame, MEDIUM gloss grate
CHUDĚJ linear floor drains provide reliable drainage for shower areas and other spaces.
The drain body is made of polypropylene. It features a unique anti-odour system that prevents unpleasant odours from flowing back from the waste pipe, strainers for collecting debris and height-adjustable legs for easier positioning during installation. The drain is characterised by its low installation height and high flow rate.
The stainless-steel grates are made of high-quality DIN 1.4301 (AISI 304) stainless steel and comply with load class K3 – 300 kg. The KLASIK/FLOOR grate allows a tile to be inserted and is therefore reversible.
The package also includes a 1000×80 mm self-adhesive waterproofing membrane.
Order No.: CH PA 650 M
EAN: 8595587428580
Parameters
- Length
- 650 mm
- Width
- 63 mm
- Height
- 75 mm
- Frame height
- 15 mm
- Color
- Gray
- Grid type
- MEDIUM gloss
- Material
- polypropylene, stainless steel
- Outlet type
- horizontal
- Outlet diameter
- 50
- Flow rate (l/min)
- 46-52
- Turnable waste connection
- Yes
- Telescopic legs
- Yes
- Load class
- K3
- Load (kg)
- 300
