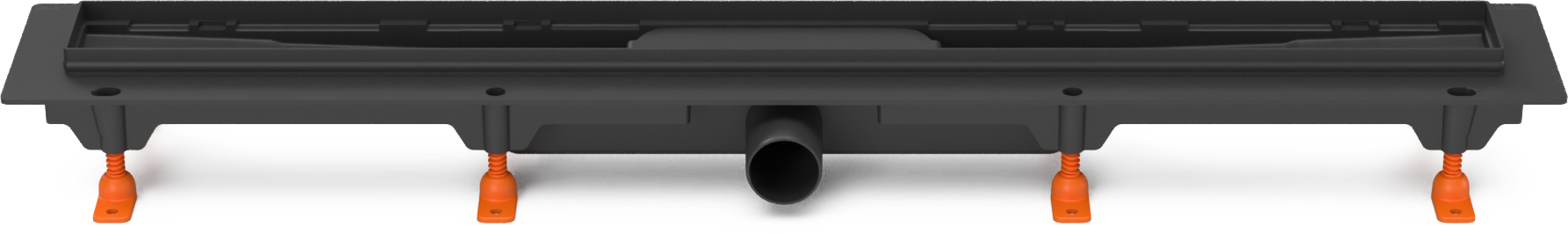

Linear floor drain Black 650 mm, side outlet D40, without grate
CHUDĚJ stainless steel linear drains provide reliable drainage for shower areas and other spaces.
The drain is supplied with a swivel PE siphon that prevents unpleasant odours from flowing back from the waste pipe and allows flexible connection to the waste system, a strainer for collecting debris and height-adjustable legs for easier positioning during installation.
The drain body and grates are made of high-quality DIN 1.4301 (AISI 304) stainless steel and comply with load class K3 – 300 kg. The KLASIK/FLOOR grate allows a tile to be inserted and is therefore reversible.
The package also includes a 1000×80 mm self-adhesive waterproofing membrane.
Order No.: CH 650/1 C
EAN: 8595587422649
Parameters
- Length
- 650 mm
- Width
- 63 mm
- Height
- 65 mm
- Frame height
- 15 mm
- Color
- Black
- Material
- polypropylene, polystyrene, stainless steel
- Outlet type
- horizontal
- Outlet diameter
- 40
- Flow rate (l/min)
- 40-43
- Telescopic legs
- Yes
- Load class
- K3
- Load (kg)
- 300
