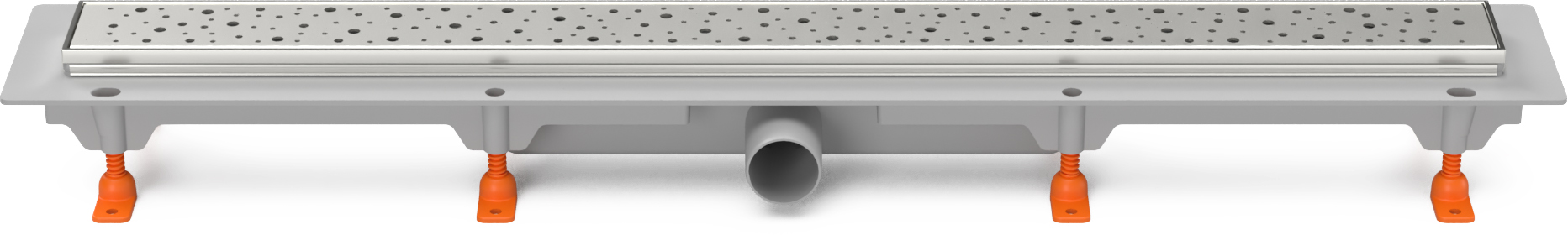

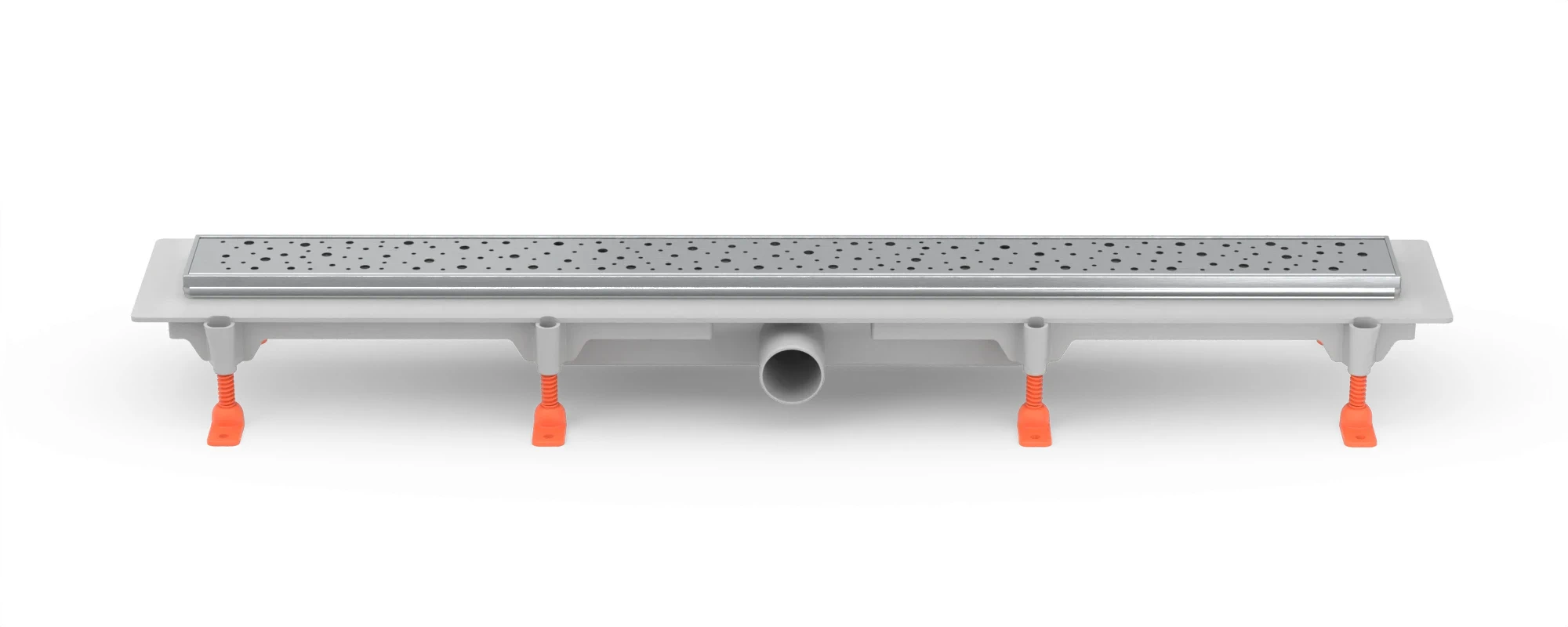

Linear floor drain 950 mm, side outlet D40, SS frame, DROPS matt grate
CHUDĚJ linear floor drains provide reliable drainage for shower areas and other spaces.
The drain body is made of polypropylene. It features a unique anti-odour system that prevents unpleasant odours from flowing back from the waste pipe, strainers for collecting debris and height-adjustable legs for easier positioning during installation. The drain is characterised by its low installation height and high flow rate.
The stainless-steel grates are made of high-quality DIN 1.4301 (AISI 304) stainless steel and comply with load class K3 – 300 kg. The KLASIK/FLOOR grate allows a tile to be inserted and is therefore reversible.
The package also includes a 1000×80 mm self-adhesive waterproofing membrane.
Order No.: CH 950 DN 1
EAN: 8595587427941
Parameters
- Length
- 950 mm
- Width
- 63 mm
- Height
- 65 mm
- Frame height
- 15 mm
- Color
- Gray
- Grid type
- DROPS mate
- Material
- polypropylene, stainless steel
- Stainless frame
- Yes
- Outlet type
- horizontal
- Outlet diameter
- 40
- Flow rate (l/min)
- 30-38
- Telescopic legs
- Yes
- Load class
- K3
- Load (kg)
- 300
