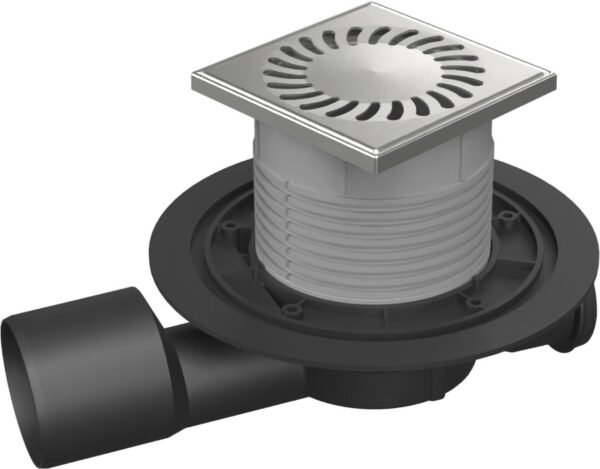

Floor drain, side outlet, multi inlet D50/75, NEPTUN float, SS frame, SUN grate 125/1.5 mm
CHUDĚJ floor drains are designed primarily for piping systems inside buildings, where they ensure reliable drainage of wastewater into the public sewer system, a domestic wastewater treatment plant or a septic tank.
They are made of high-quality materials with high resistance to corrosion, mechanical stress and varying water temperatures. The drain body is made of polypropylene, while the stainless steel frame and grate are made of DIN 1.4301 (AISI 304) stainless steel. Whether a stainless steel frame is included is specified in the product name.
The drain is equipped with a strainer for collecting debris and a NEPTUN float designed for indoor use. If the siphon dries out, the float closes the drain outlet and effectively prevents unpleasant odours from flowing back from the sewer system. Temperature resistance: up to 70 °C. The drain complies with load class K3 – 300 kg and is marked with the Czech conformity mark CCZ.
Order No.: 427 N A X
EAN: 8595587431733
Parameters
- Length
- 125 mm
- Width
- 125 mm
- Height
- 156 mm
- Color
- Gray
- Grid type
- SUN
- Material
- polypropylene, polystyrene, stainless steel
- Stainless frame
- Yes
- Outlet type
- horizontal continuous, horizontal with adapter
- Outlet diameter
- 50, 75
- Flow rate (l/min)
- 24-44
- Waste connection diameter
- 75 mm
- Turnable waste connection
- Yes
- Adjustable height
- Yes
- Outdoor use
- Yes
- Load class
- K3
- Load (kg)
- 300 kg
