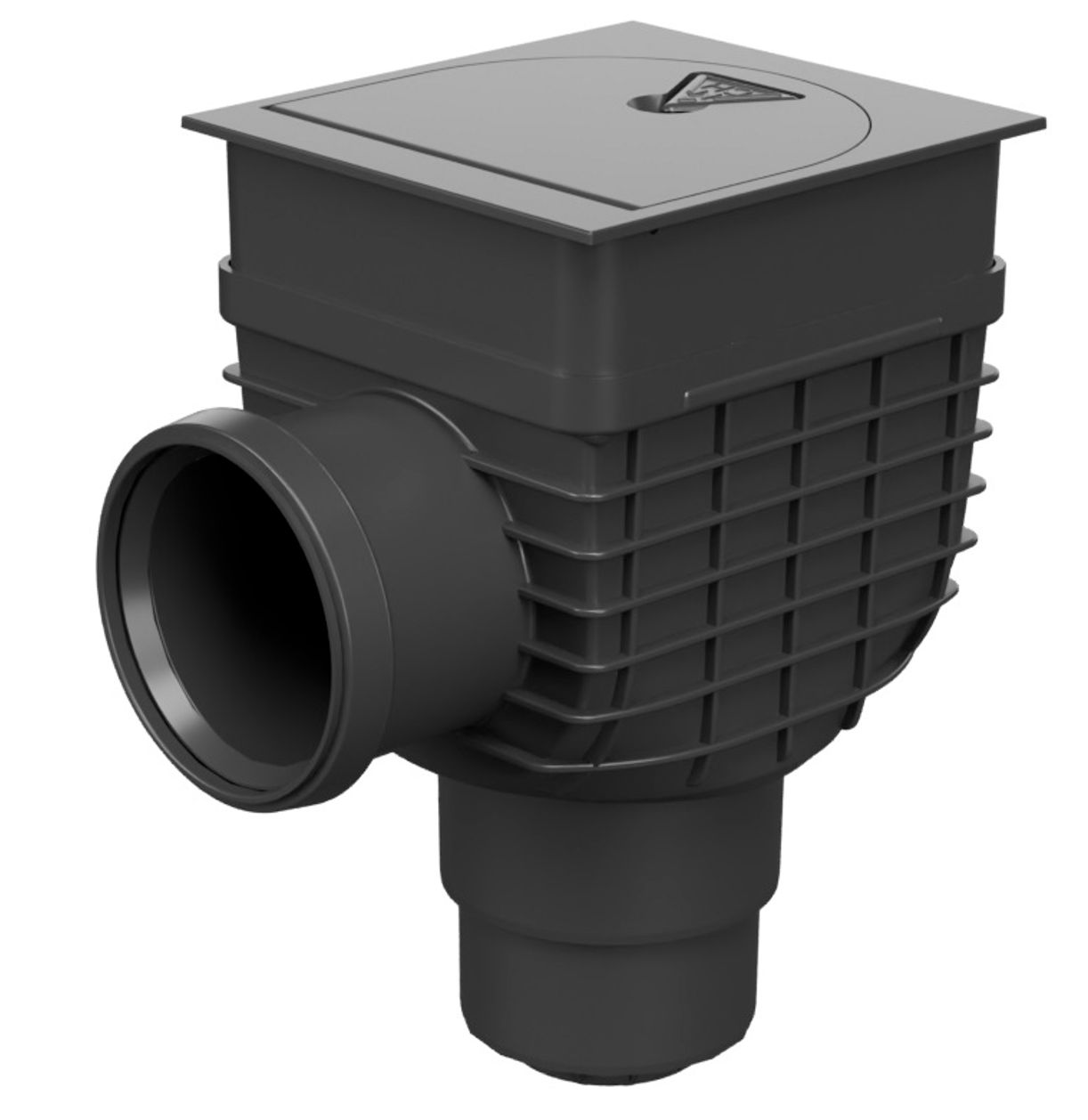

Rainwatter collector D 110/125 with backside inlet
The roof drainage trap with a rear inlet is a robust and durable product, whose structure is reinforced with ribbing, ensuring greater strength and stability in the ground. It features an odor-proof flap that effectively prevents the backflow of odors from the drainage system into the environment, and a basket for catching dirt, preventing pipe clogs. With a load class of K3-300 kg, the trap is sufficiently durable for areas with high operational loads. It is designed to allow easy and tight connection of waste rainwater pipes routed along facades directly to the sewage system, simplifying installation and increasing the efficiency of the drainage system. This trap is an ideal solution for reliable rainwater drainage and protecting the sewage system from dirt.

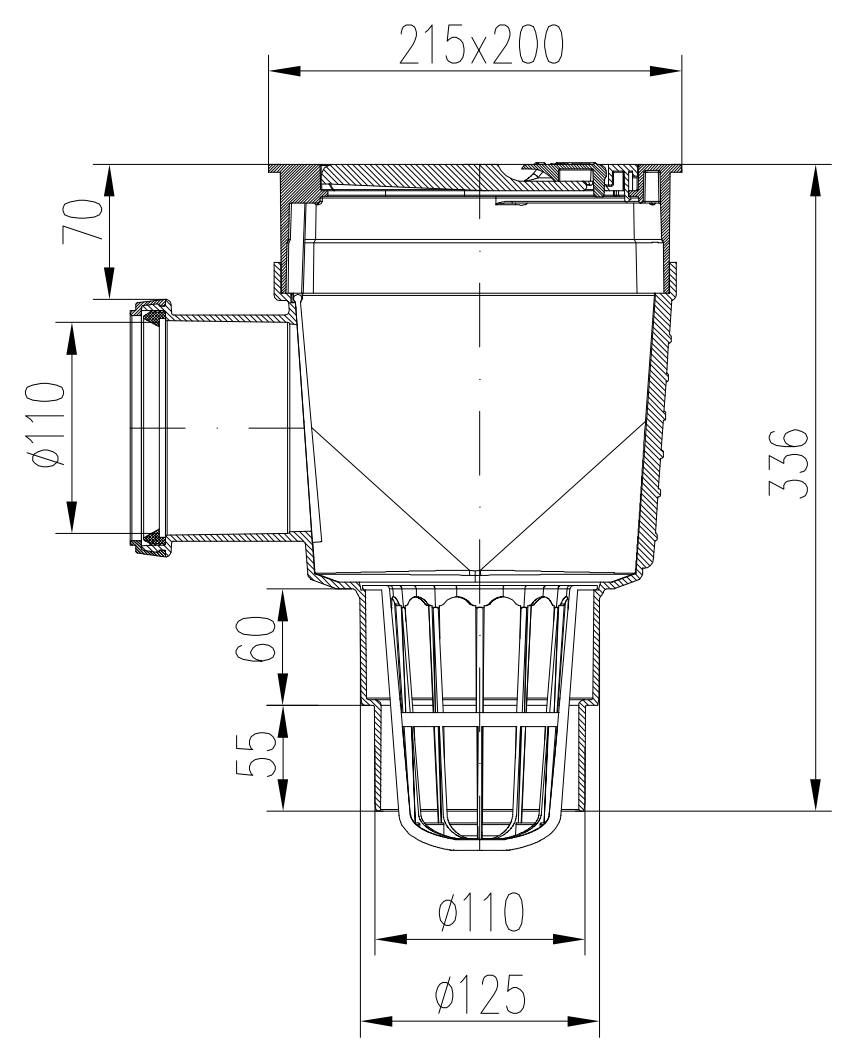

Parameters
- Length
- 215 mm
- Width
- 200 mm
- Height
- 336 mm
- Frame height
- 70 mm
- Color
- Black
- Material
- polypropylene, polystyrene
- Outlet type
- horizontal, vertical
- Outlet diameter
- 110, 125
- Flow rate (l/min)
- 455
- Waste connection diameter
- 110 mm
- Adjustable height
- No
- Outdoor use
- Yes
- Load class
- K3
- Load (kg)
- 300
