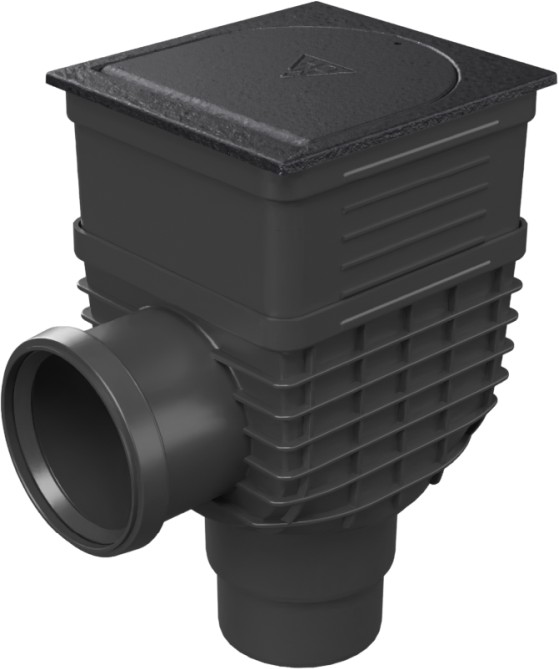

Rainwatter collector D110/125, cast iron surface with backside inlet D110

Parameters

Length

215 mm

Width

200 mm

Height

336 mm

Frame height

70 mm

Color

Black

Material

cast iron, polypropylene, polystyrene

Outlet type

horizontal, vertical

Outlet diameter

110, 125

Flow rate (l/min)

455

Waste connection diameter

110 mm

Adjustable height

No

Outdoor use

Yes

Load class

K3

Load (kg)

300
