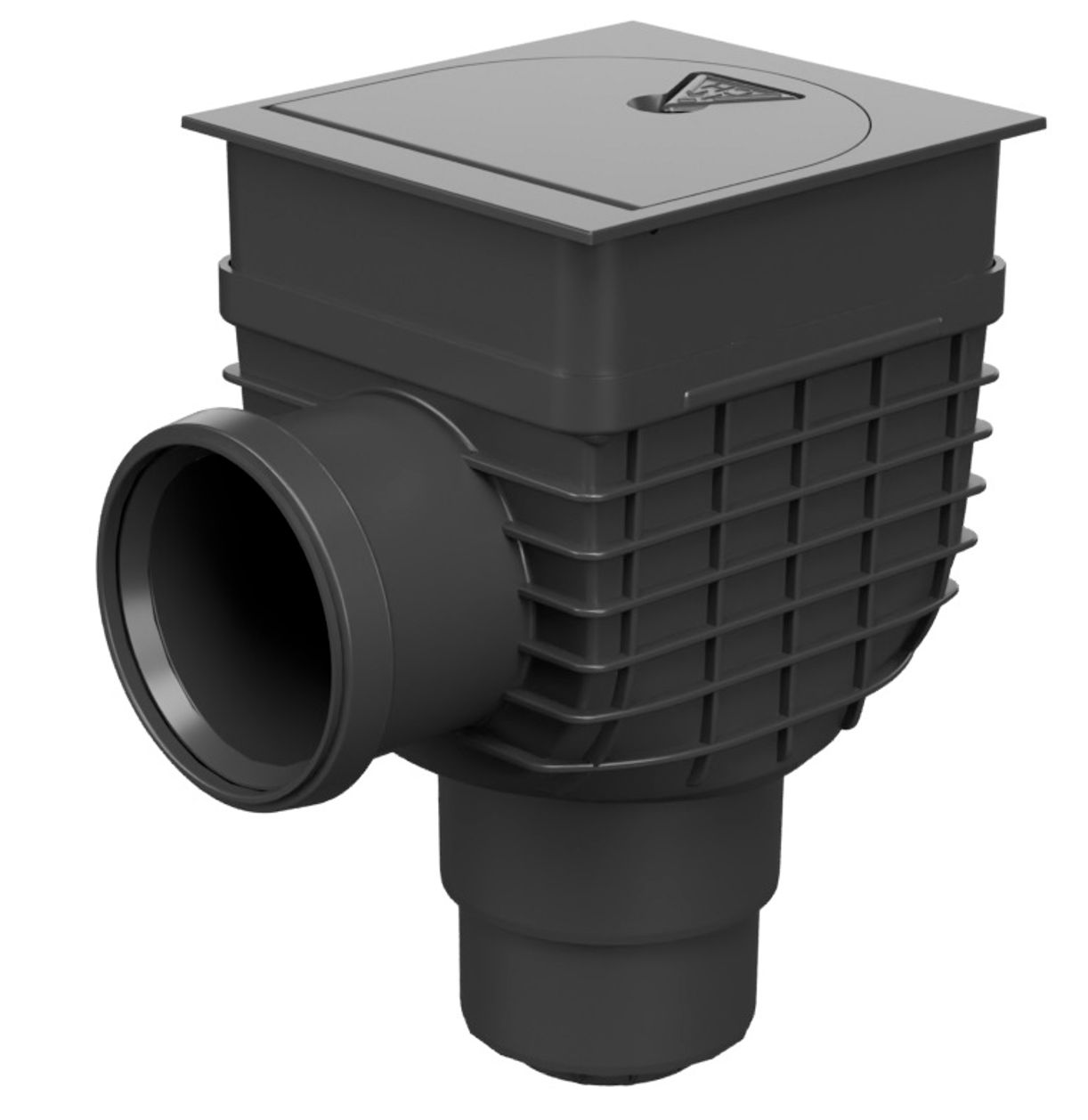

Rainwater collector with rear inlet D110, all-plastic, bottom outlet D110/125

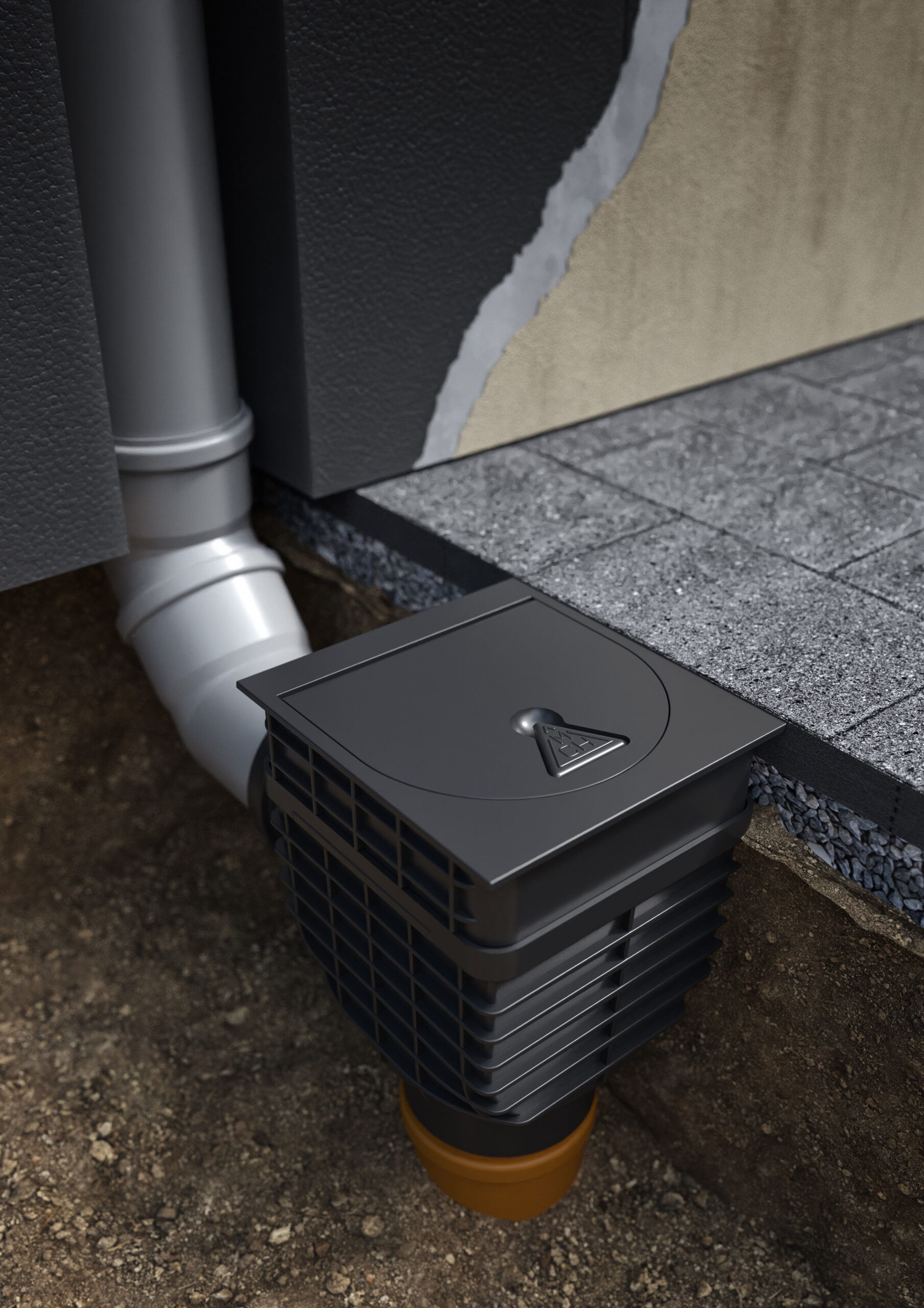

Rainwater collectors with a rear inlet are designed for reliable drainage of rainwater into the sewer system when connected to downpipes on buildings with insulated façades. The design allows the downpipe to be connected from the rear below ground level, providing a clean and discreet installation.

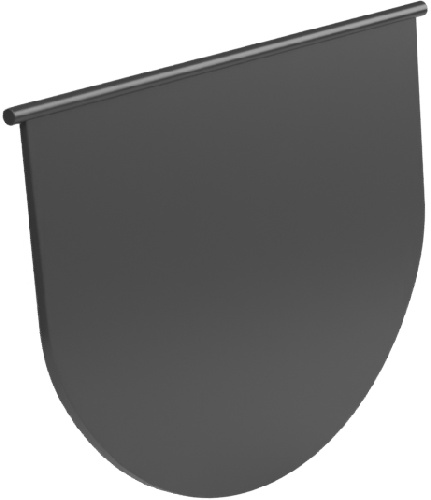

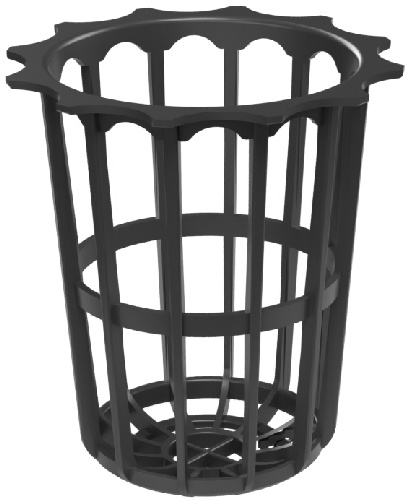

Their bodies are reinforced with ribbing, which ensures high strength and stability of the product in the ground. The collectors include an anti-odour flap preventing backflow of odours from the sewer and a removable basket for collecting debris. The collector allows easy access for cleaning and maintenance.
It is made of UV-stabilised polypropylene and marked with the Czech conformity mark CCZ. Load class K3 – 300 kg. Temperature resistance: up to 90 °C. Flow rate: 530 l/min.

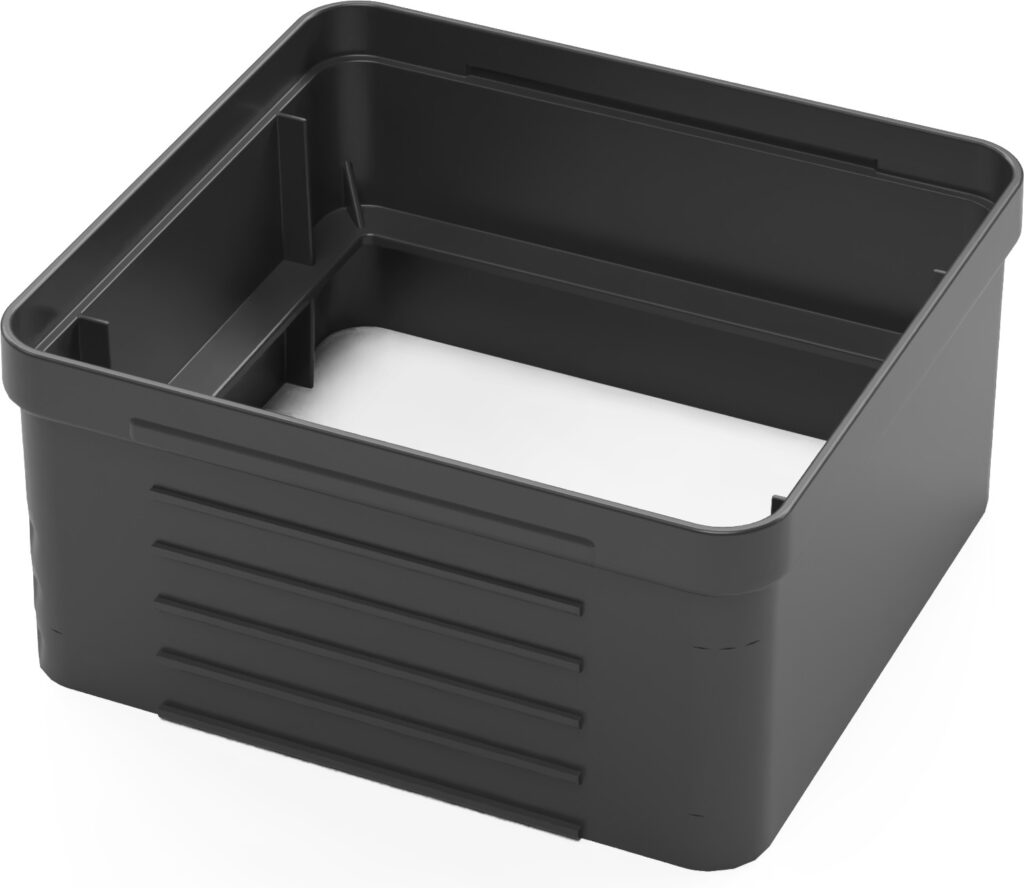

For greater installation flexibility, an extension piece (item no. 930/15) is available separately, allowing height adjustment from 2 to 8.6 cm.
Order No.: 926
EAN: 8595587467787
Parameters
- Length
- 215 mm
- Width
- 200 mm
- Height
- 336 mm
- Frame height
- 70 mm
- Color
- Black
- Material
- polypropylene, polystyrene
- Outlet type
- horizontal, vertical
- Outlet diameter
- 110, 125
- Flow rate (l/min)
- 455
- Waste connection diameter
- 110 mm
- Adjustable height
- No
- Outdoor use
- Yes
- Load class
- K3
- Load (kg)
- 300 kg
