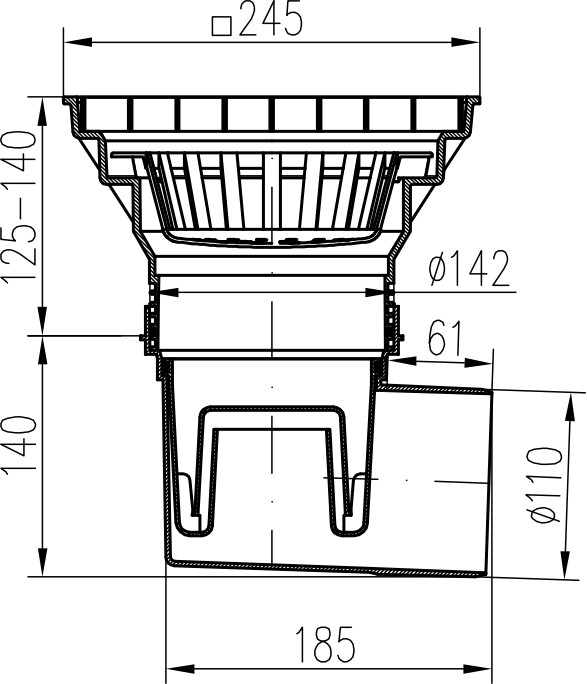

Street drain with side outlet D110, water seal, without collar, stainless steel grate 250×250 mm

CHUDĚJ street drains are designed to drain rainwater and surface water from roads, pavements, car parks and other paved areas into the sewer system. They help protect property and infrastructure from damage caused by excessive water accumulation.

They are available with cast iron, stainless steel or plastic grates. A removable basket for collecting debris is included.

Each drain includes an anti-odour system preventing backflow of odours from the sewer. Depending on the version, the drain is equipped with a dry anti-odour flap for outdoor use, a water seal for indoor use or a NEPTUN float, also designed for indoor use. Temperature resistance is up to 90 °C, or up to 70 °C with the NEPTUN float.

The drain body is made of UV-stabilised polypropylene. The grate is made of DIN 1.4301 (AISI 304) stainless steel. Thanks to its anti-slip design, durable material and timeless appearance, it is suitable for areas where high standards of safety, durability and aesthetics are required. The open design of the grate reduces splashback, helping protect the façade and surrounding surfaces from dirt. Load class K3 – 300 kg.

The drains allow connection of waterproofing and are marked with the Czech conformity mark CCZ.
