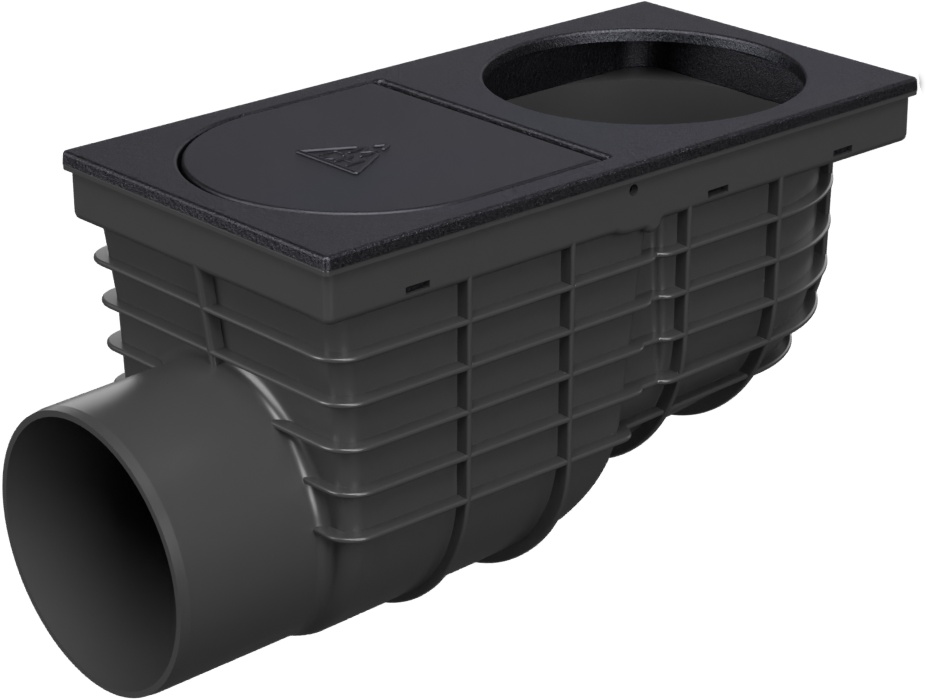

Rainwater collector with side outlet D110, cast iron surface, for D125 downpipe

Rainwater collectors with a cast iron surface are designed for reliable drainage of rainwater into the sewer system after connection to a downpipe. Their design makes them suitable for historic buildings. A cast iron socket for direct connection of a cast iron downpipe can also be ordered for collectors with a round inlet. The advantage of the side-outlet version is its low installation height.

Their bodies are reinforced with ribbing, which ensures high strength and stability of the product in the ground. The collectors include an anti-odour flap preventing backflow of odours from the sewer and a strainer for collecting debris. They are equipped with a partition preventing the downpipe from falling inside and allow easy access for cleaning and maintenance.

The body is made of UV-stabilised polypropylene, while the upper part is made of cast iron DIN 1691. The cast iron surface is coated with thermoset paint. The collectors comply with load class L15 – 1,500 kg and are marked with the Czech conformity mark CCZ. Temperature resistance: up to 90 °C.

Rainwater collectors with a cast iron surface are available in versions for round downpipes (inlet diameter 100 or 125 mm) and square downpipes (inlet size 100 × 100 or 125 × 125 mm).
