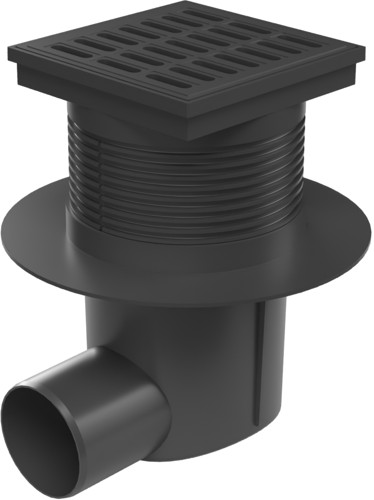

Street drain with side outlet D75, NEPTUN float, collar, plastic grate 150×150 mm
CHUDĚJ street drains are designed to drain rainwater and surface water from roads, pavements, car parks and other paved areas into the sewer system. They help protect property and infrastructure from damage caused by excessive water accumulation.
They are available with cast iron, stainless steel or plastic grates. A removable basket for collecting debris is included. A stainless steel basket for protection against rodents can be ordered separately.
Each drain includes an anti-odour system preventing backflow of odours from the sewer. Depending on the version, it is equipped with a dry anti-odour flap for outdoor use, a water seal for indoor use or a NEPTUN float, also designed for indoor use. Temperature resistance is up to 90 °C, or up to 70 °C with the NEPTUN float.
The drain body and grate are made of UV-stabilised polypropylene. Load class K3 – 300 kg. The drains allow connection of waterproofing and are marked with the Czech conformity mark CCZ.
Order No.: 433 X
EAN: 8595587415702
Parameters
- Length
- 150 mm
- Width
- 150 mm
- Height
- 255 mm
- Color
- Black
- Grid type
- Plastová
- Material
- polypropylene, polystyrene
- Outlet type
- horizontal
- Outlet diameter
- 75
- Flow rate (l/min)
- 69-76
- Turnable waste connection
- Yes
- Adjustable height
- Yes
- Outdoor use
- Yes
- Load class
- K3
- Load (kg)
- 300 kg
