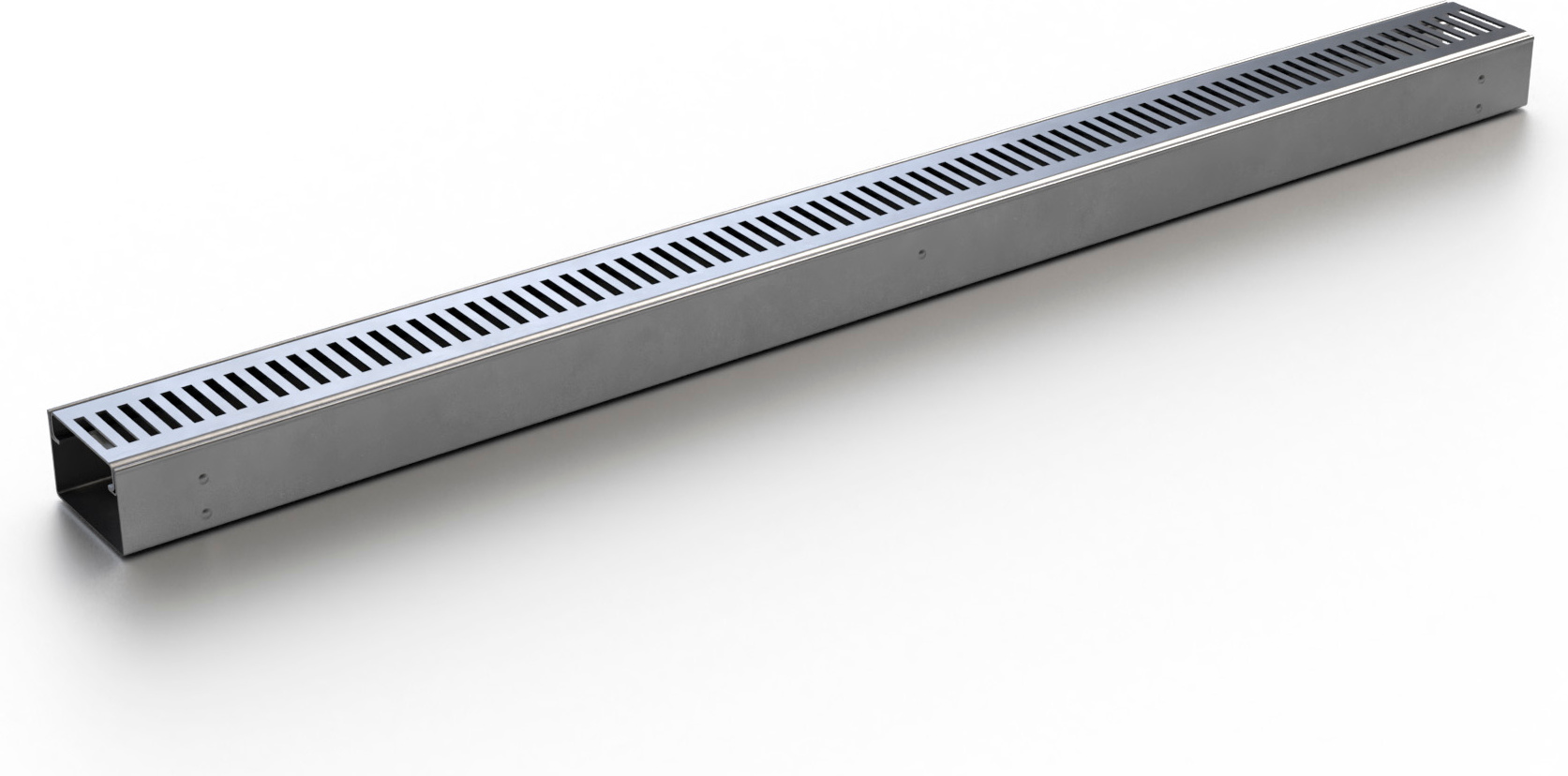

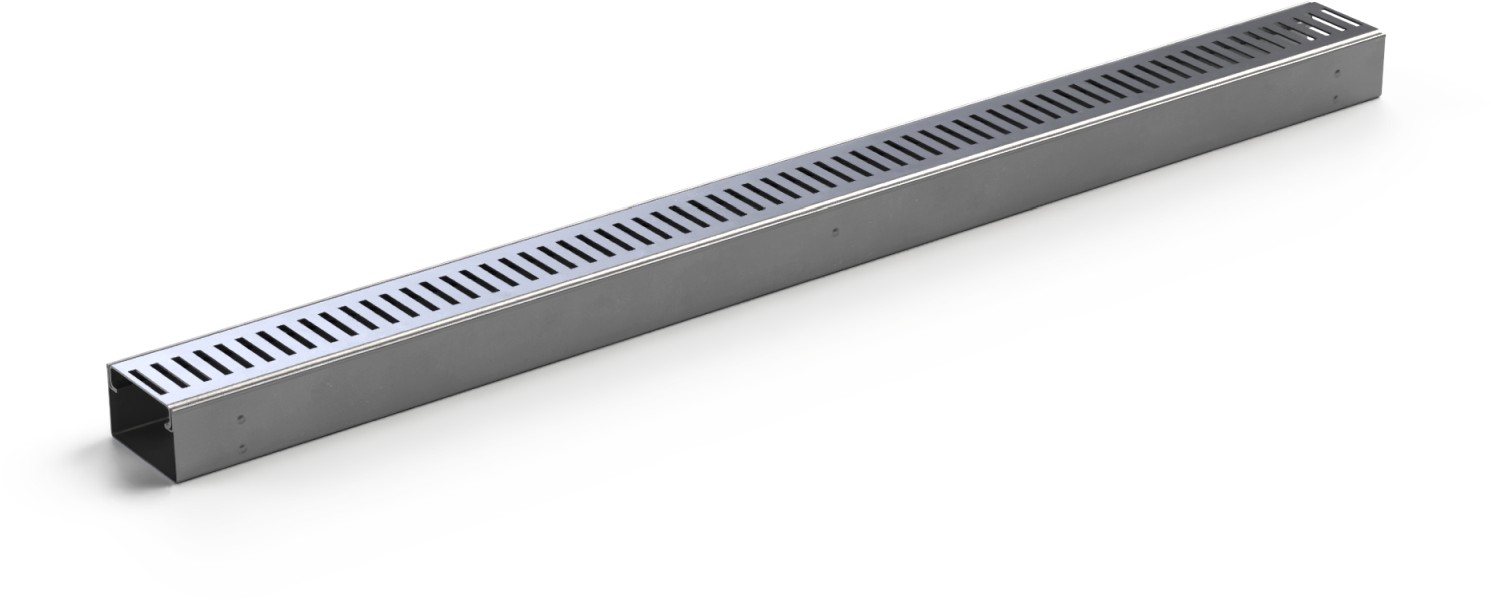

COVE stainless steel channel with STANDARD grate (1000×80×50 mm)
The COVE stainless steel drainage channel offers a modern and functional solution for water drainage in both exterior and interior applications. It is ideal for drainage around swimming pools, terraces of family houses, balconies, garages and other heavily used areas where safety, reliability and clean design are required.
Both the channel and grate are made of DIN 1.4301 (AISI 304) stainless steel and can be adapted to architecturally demanding construction projects. The KLASIK/FLOOR grate allows tiles to be inserted for an elegant and minimalist look.
Thanks to its low installation height of only 50 mm, the system is also an ideal choice for barrier-free construction.
The channel allows connection to a D50 swivel siphon.
Order No.: CH N 1000
EAN: 8595587435465

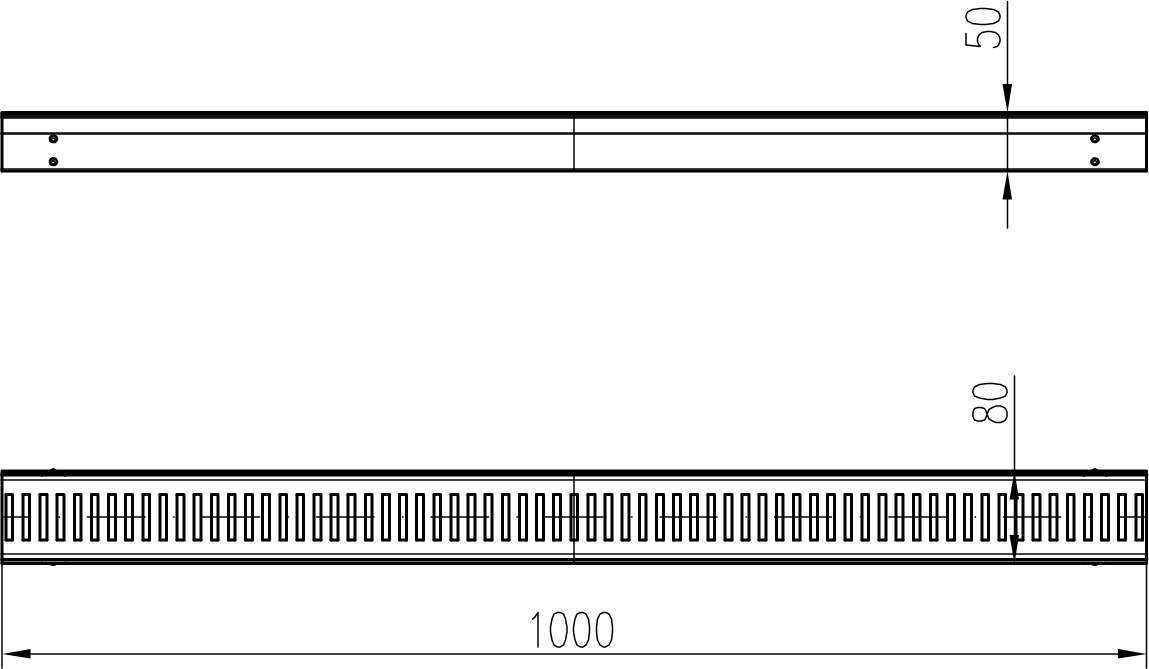

Parameters
- Length
- 1000 mm
- Width
- 80 mm
- Height
- 50 mm
- Grid type
- STANDARD
- Material
- stainless steel
- Outlet type
- horizontal
- Outlet diameter
- 50
- Turnable waste connection
- Yes
- Outdoor use
- Yes
- Load class
- K3
- Load (kg)
- 300 kg
