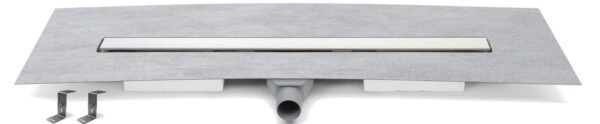

Stainless steel linear drain Aquarius with WP membrane 900 mm, swivel siphon D50
Stainless steel linear drain Aquarius uses advanced technology to provide reliable protection against unwanted water leakage in your bathroom. The drain body is formed from a single piece with no welded joints, while the waterproofing membrane is hermetically bonded to the drain during manufacture.

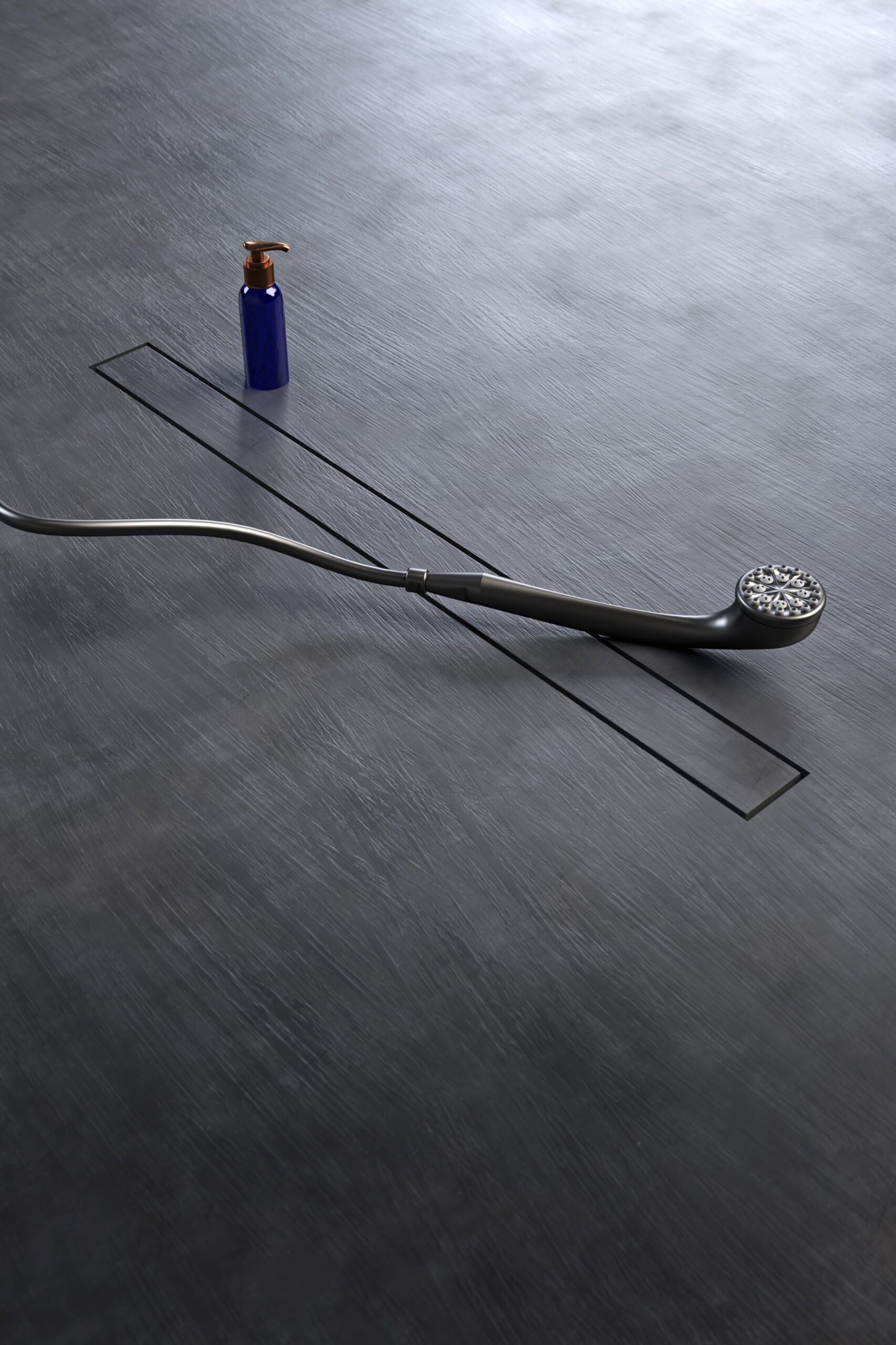

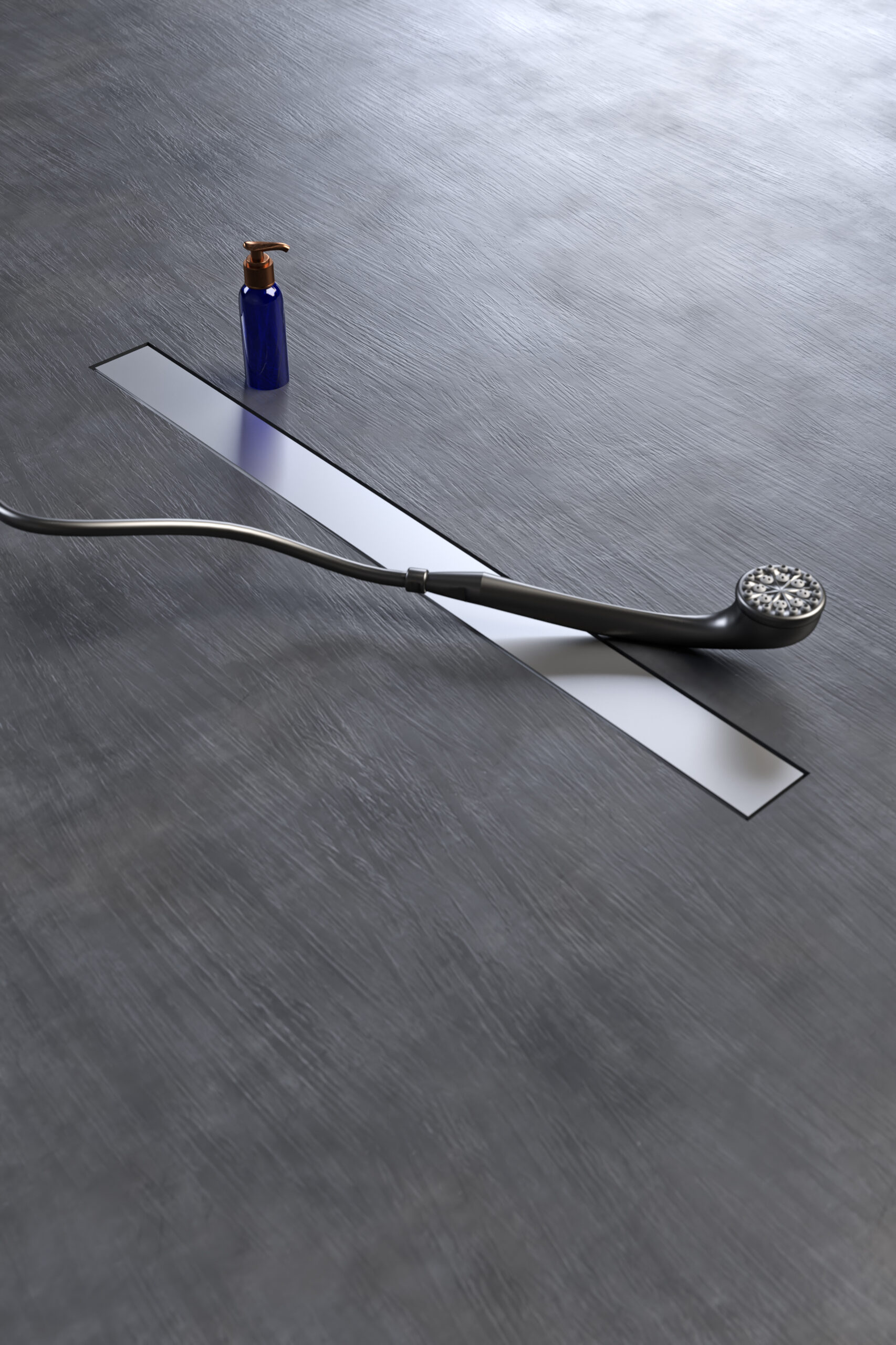

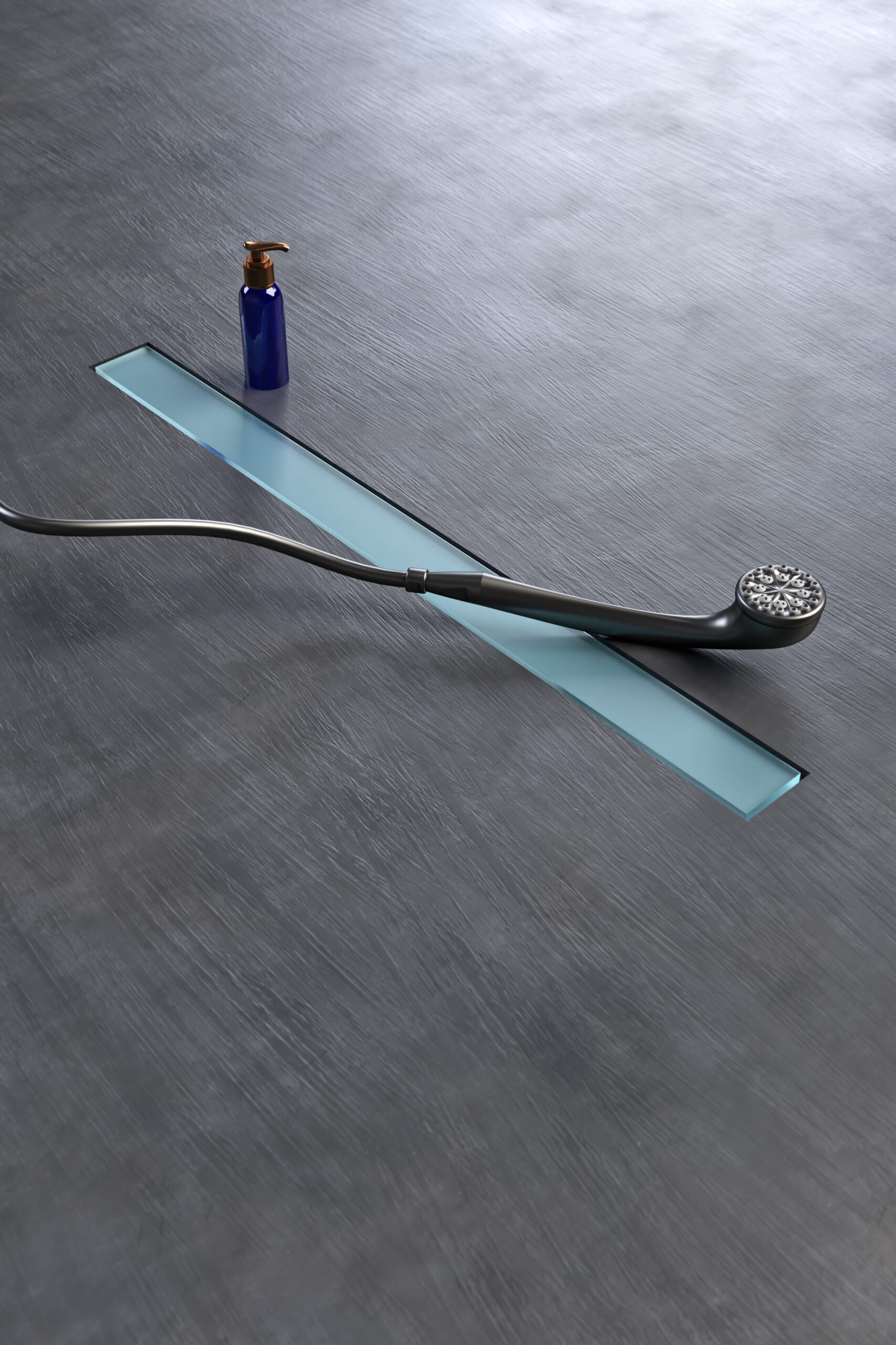

The drain is made of high-quality DIN 1.4401 (AISI 316) stainless steel and meets the requirements of load class K3 – 300 kg. Adjustable supports allow the Alu mounting rail to be set to suit the tile thickness. The rail can be fitted with tile, glass or a stainless-steel strip.
The drain is supplied with an anti-odour siphon that prevents unpleasant odours from escaping through the waste pipe, a debris strainer and height-adjustable legs for easier levelling during installation.
Order No.: CH N 9003
EAN: 8595587429471
Parameters
- Length
- 900 mm
- Width
- 50 mm
- Height
- 70 mm
- Color
- Gray
- Material
- aluminium, polypropylene, stainless steel
- Outlet type
- horizontal
- Outlet diameter
- 50
- Flow rate (l/min)
- 46-50
- Turnable waste connection
- Yes
- Telescopic legs
- Yes
- Load class
- K3
- Load (kg)
- 300
