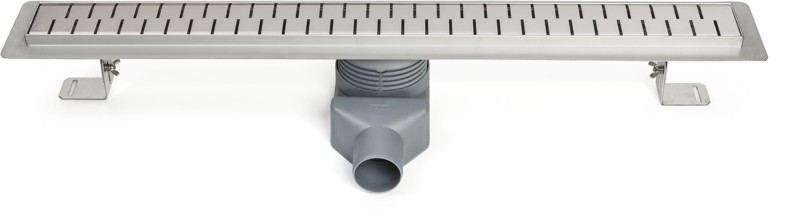

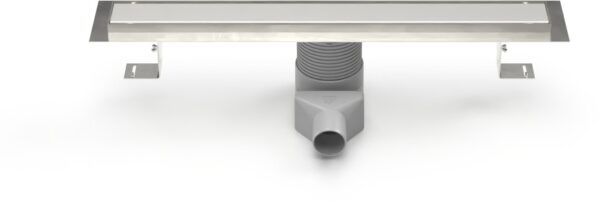

Stainless steel linear floor drain, side outlet D50, plastic siphone, 1050mm, Klasik grid gloss
Ord. number:
CH N 1050 K
Parameters
- Length
- 1050 mm
- Width
- 65 mm
- Frame height
- 15 mm
- Grid type
- KLASIK/FLOOR gloss
- Material
- polypropylene, stainless steel
- Telescopic legs
- Yes
- Turnable waste connection
- Yes
- Outlet diameter
- 50
- Outlet type
- horizontal
- Flow rate (l/min)
- 41-45
- Load (kg)
- 300
- Load class
- K3
