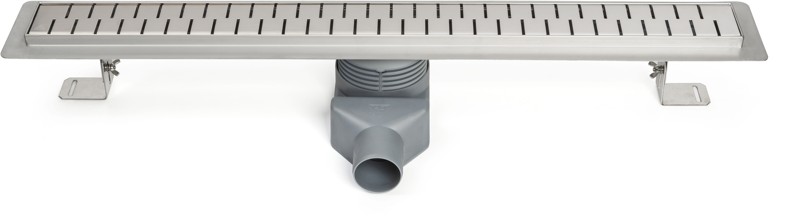

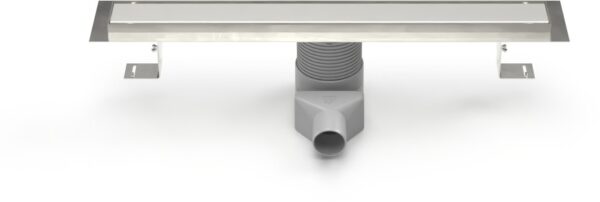

Stainless steel linear drain 1050 mm, height adjustable siphon D50, KLASIK/FLOOR matt grate
CHUDĚJ stainless steel linear drains provide reliable drainage for shower areas and other spaces.
The drain is supplied with a swivel PE siphon that prevents unpleasant odours from flowing back from the waste pipe and allows flexible connection to the waste system, a strainer for collecting debris and height-adjustable legs for easier positioning during installation.
The drain body and grates are made of high-quality DIN 1.4301 (AISI 304) stainless steel and comply with load class K3 – 300 kg. The KLASIK/FLOOR grate allows a tile to be inserted and is therefore reversible.
The package also includes a 1000×80 mm self-adhesive waterproofing membrane.
Order No.: CH N 1050 K 1
EAN: 8595587419717
Parameters
- Length
- 1050 mm
- Width
- 65 mm
- Height
- 64 mm
- Frame height
- 15 mm
- Color
- Gray
- Grid type
- KLASIK/FLOOR mate
- Material
- polypropylene, stainless steel
- Outlet type
- horizontal
- Outlet diameter
- 50
- Flow rate (l/min)
- 42-48
- Turnable waste connection
- Yes
- Telescopic legs
- Yes
- Load class
- K3
- Load (kg)
- 300
