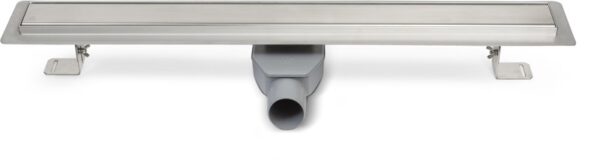

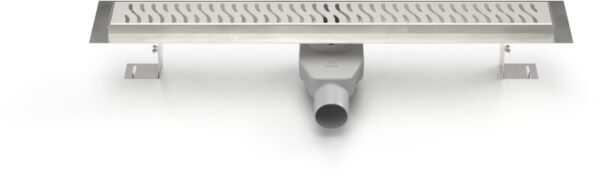

Stainless steel linear drain 650 mm, swivel siphon D50, HARMONY gloss grate
CHUDĚJ stainless steel linear drains provide reliable drainage for shower areas and other spaces.
The drain is supplied with a swivel PE siphon that prevents unpleasant odours from flowing back from the waste pipe and allows flexible connection to the waste system, a strainer for collecting debris and height-adjustable legs for easier positioning during installation.
The drain body and grates are made of high-quality DIN 1.4301 (AISI 304) stainless steel and comply with load class K3 – 300 kg. The KLASIK/FLOOR grate allows a tile to be inserted and is therefore reversible.
The package also includes a 1000×80 mm self-adhesive waterproofing membrane.
Order No.: CH NA 650 H
EAN: 8595587429570
Parameters
- Length
- 650 mm
- Width
- 65 mm
- Height
- 59 mm
- Frame height
- 15 mm
- Color
- Gray
- Grid type
- HARMONY gloss
- Material
- polypropylene, stainless steel
- Outlet type
- horizontal
- Outlet diameter
- 50
- Flow rate (l/min)
- 42-48
- Turnable waste connection
- Yes
- Telescopic legs
- Yes
- Load class
- K3
- Load (kg)
- 300
