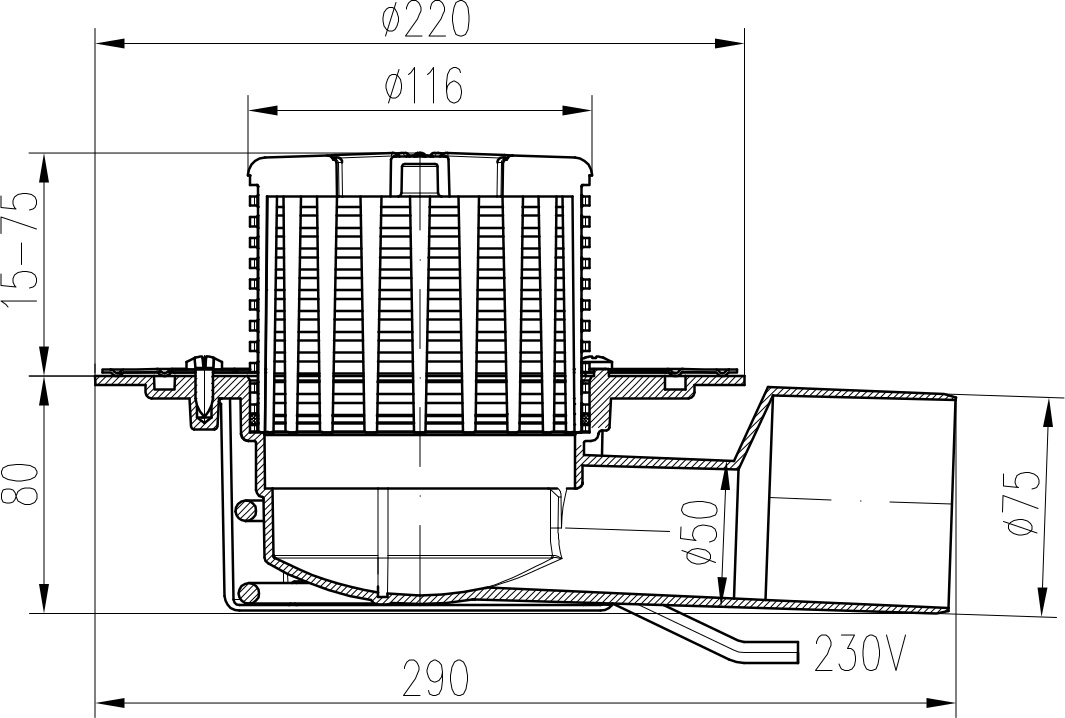

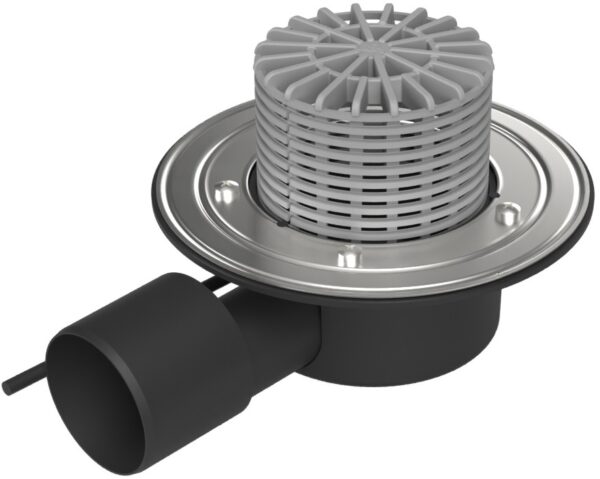

Terrace drain with side outlet D50/75, stainless steel flange, 10 W heating cable
The terrace drain is designed for drainage of terraces and flat roofs. The drain is made of PP and DIN 1.4301 (AISI 304) stainless steel and is equipped with a UV-stabilised inlet basket.
Versions with a stainless steel flange and a 230 V / 10 W heating cable are available. A 500×500 mm bituminous membrane can also be ordered.
Flow rate: 84 l/min.
Order No.: TV 388 B1
EAN: 8595587445068
Parameters
- Length
- 116 mm
- Width
- 116 mm
- Height
- 155 mm
- Material
- polypropylene, stainless steel
- Outlet type
- horizontal with adapter
- Outlet diameter
- 50, 75
- Flow rate (l/min)
- 84
- Turnable waste connection
- Yes
- Adjustable height
- Yes
- Outdoor use
- Yes
Product packaging
Quantity per box: 5
Quantity per palette: 120
