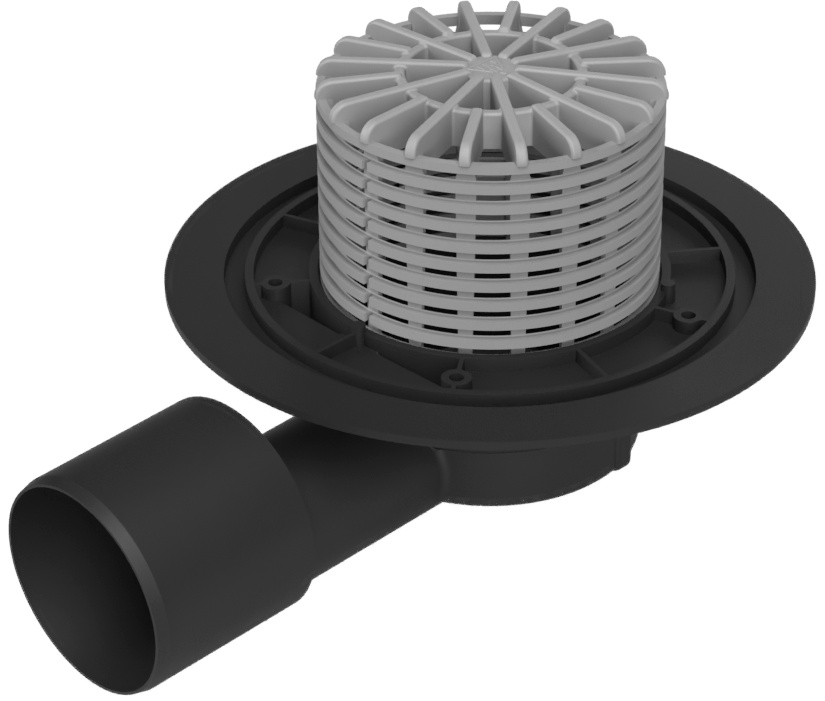

Terrace drain with side outlet D50/75

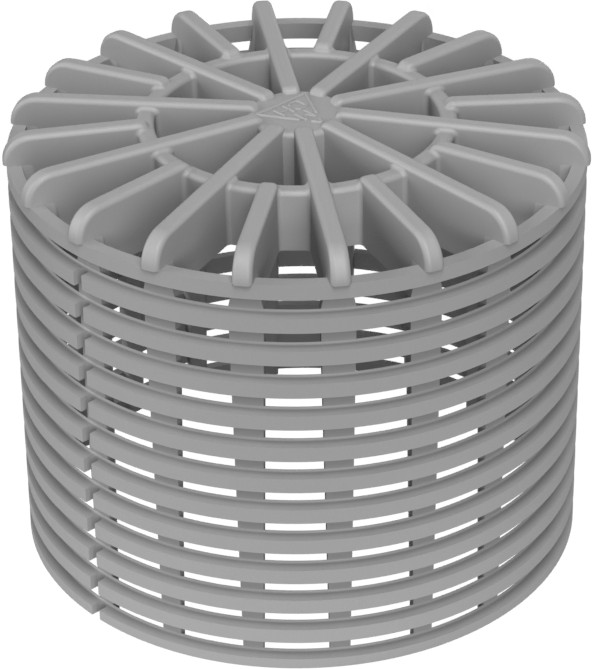

The terrace drain is designed for drainage of terraces and flat roofs. The drain is made of PP and DIN 1.4301 (AISI 304) stainless steel and is equipped with a UV-stabilised inlet basket.
Versions with a stainless steel flange and a 230 V / 10 W heating cable are available. A 500×500 mm bituminous membrane can also be ordered.
Flow rate: 84 l/min.
Order No.: TV 388 A
EAN: 8595587446843
Parameters
- Length
- 116 mm
- Width
- 116 mm
- Height
- 155 mm
- Material
- polypropylene, stainless steel
- Outlet type
- horizontal with adapter
- Outlet diameter
- 50, 75
- Flow rate (l/min)
- 84
- Turnable waste connection
- Yes
- Adjustable height
- Yes
- Outdoor use
- Yes
Product packaging
Quantity per box: 5
Quantity per palette: 120
