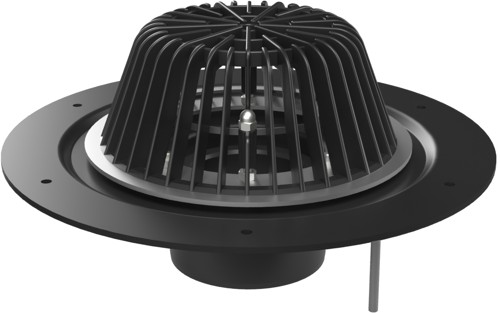

VORTEX gravity roof drain D110 with heating cable 10W
The gravity roof drains are designed for draining rainwater from fl at roofs, compliant to EN 1253.
The upper inlet basket prevents dirt from entering.
For options Vortex SVG 004, 005 and 006, the packaging contains a self-regulating heating cable with 10 W of heating output to prevent the roof inlet from freezing.
Flow rate (D 110) ? 395 l/min

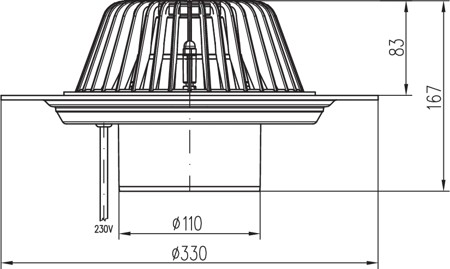

Parameters
- Height
- 84 mm
- Diameter
- 330 mm
- Color
- Black
- Material
- polypropylene, stainless steel
- Outlet type
- vertical
- Outlet diameter
- 110
- Flow rate (l/min)
- 395
- Outdoor use
- Yes
