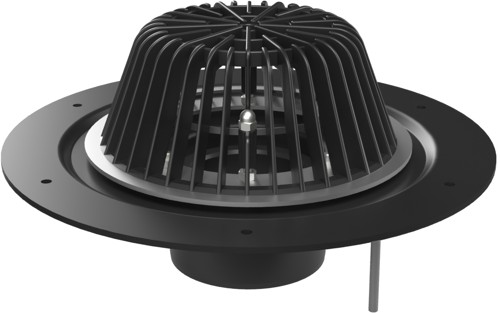

VORTEX gravity roof drain D110 with 10 W heating cable
Gravity roof drains are designed to drain rainwater from flat roofs. The drains are equipped with an inlet basket that prevents debris from entering. VORTEX SVG 004, 005 and 006 versions are supplied with a 10 W self-regulating heating cable, which prevents the roof drain from freezing and ensures reliable operation even during winter. The drain is suitable for bituminous or asphalt roofing membranes.
Order No.: SVG 005
EAN: 8595587413302
Parameters

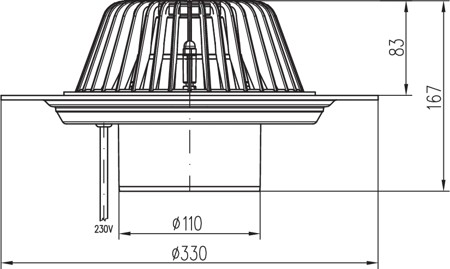

- Height
- 84 mm
- Diameter
- 330 mm
- Color
- Black
- Material
- polypropylene, stainless steel
- Outlet type
- vertical
- Outlet diameter
- 110
- Flow rate (l/min)
- 395
- Outdoor use
- Yes
Product packaging
Quantity per box: 1
Quantity per palette: 60
