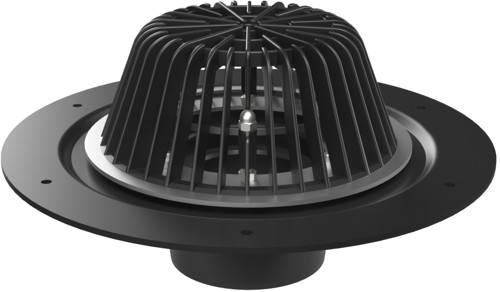

VORTEX gravity roof drain D110

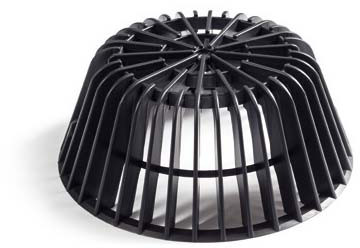

The gravity roof drain is designed for the drainage of rainwater from flat roofs in accordance with the EN 1253 standard. The upper inlet basket prevents debris from entering the drain. In the Vortex SVG 004 version, a self-regulating heating cable with an output of 10 W is included in the package to prevent the roof drain from freezing.
The drain is suitable for bitumen or asphalt roofing membranes.
Order No.: SVG 002
EAN: 8595587413272
Parameters
- Height
- 84 mm
- Diameter
- 330 mm
- Color
- Black
- Material
- polypropylene, stainless steel
- Outlet type
- vertical
- Outlet diameter
- 110
- Flow rate (l/min)
- 395
- Outdoor use
- Yes
Product packaging
Quantity per box: 1
