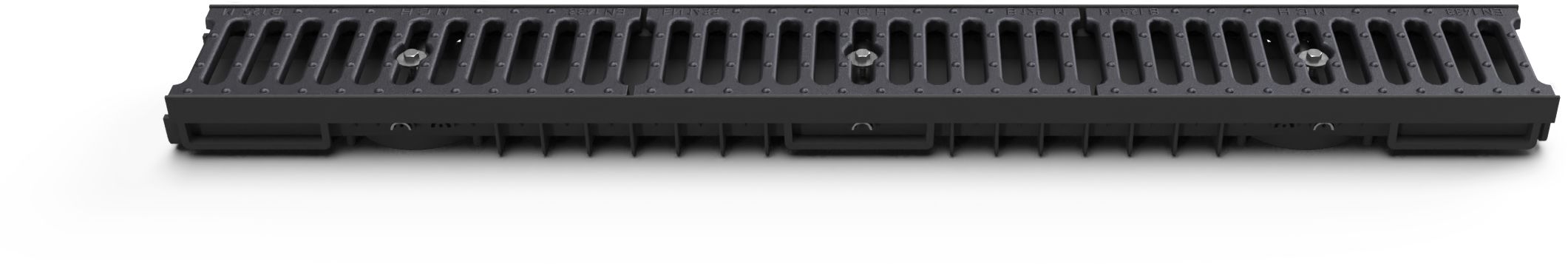

Low-profile outdoor drainage channel with cast iron grate
Outdoor drainage channels are available with cast iron, galvanised steel or plastic grates. They are designed for drainage in public and civil engineering projects, traffic areas intended for cyclists and pedestrians, access roads and pedestrian routes, pavements and car parks for passenger vehicles.

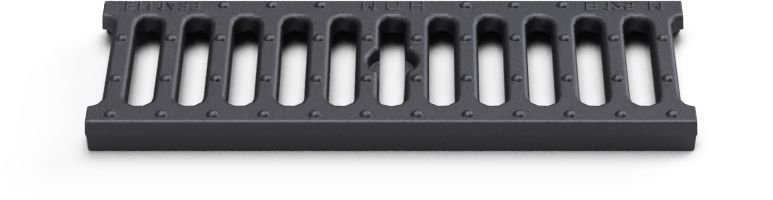

All grate types are secured with galvanised screws to ensure safe and secure fixing. The channel body is made of polypropylene, while the grate is made of cast iron DIN 1691. The cast iron grate complies with load class B125 according to EN 1433 (12,500 kg).
The channels are equipped with both side and bottom outlets, with the option of installing an anti-odour water seal. They allow connection from different directions, making installation significantly easier.
Order No.: CH 1114
EAN: 8595587447536
Parameters
- Length
- 1000 mm
- Width
- 130 mm
- Height
- 55 mm
- Color
- Black
- Material
- cast iron, polypropylene
- Outlet type
- horizontal, vertical
- Outlet diameter
- 110, 75
- Outdoor use
- Yes
- Load class
- M125
- Load (kg)
- 12500 kg
