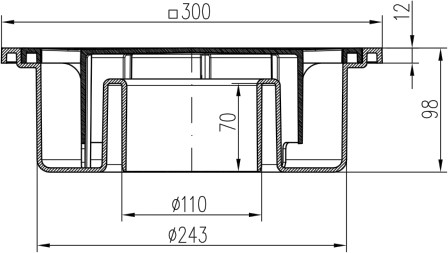

Floor drain with bottom outlet D110, 300×300 mm, plastic grate, load capacity 1,500 kg

The drain with an anti-odour trap is made of polypropylene and is designed primarily for indoor use in areas such as utility rooms, garages, warehouses, gardens, courtyards, etc. Temperature resistance: up to 90 °C. The drain complies with load class L15 – 1,500 kg and is marked with the Czech conformity mark CCZ.

HT and KG pipes can be connected to the product, including an elbow socket.

CHUDĚJ floor drains are designed primarily for piping systems inside buildings, where they ensure reliable drainage of wastewater into the public sewer system, a domestic wastewater treatment plant or a septic tank. They are made of high-quality materials with high resistance to mechanical stress and varying water temperatures.

View in BIM catalogue

Order No.: 220 P

EAN: 8595587415917

Parameters

Length
300 mm
Width
300 mm
Height
98 mm
Color
Gray
Grid type
Plastová šedá
Material
polypropylene
Outlet type
vertical
Outlet diameter
110
Flow rate (l/min)
171
Turnable waste connection
No
Outdoor use
No
Load class
L15
Load (kg)
1500 kg
