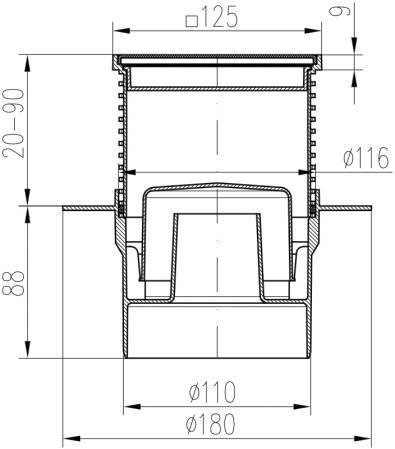

Floor drain with bottom outlet D110, collar, GATE grate 125/1.5 mm
CHUDĚJ floor drains are designed primarily for piping systems inside buildings, where they ensure reliable drainage of wastewater into the public sewer system, a domestic wastewater treatment plant or a septic tank.
They are made of high-quality materials with high resistance to corrosion, mechanical stress and varying water temperatures. The drain body is made of polypropylene, while the frame and grate are made of DIN 1.4301 (AISI 304) stainless steel.
The drain is equipped with a strainer for collecting debris and an anti-odour trap. It is designed for indoor use. Temperature resistance is up to 90 °C. The drain complies with load class K3 – 300 kg and is marked with the Czech conformity mark CCZ.
The drain is available with either a plastic or stainless steel frame. Whether a stainless steel frame is included is specified in the product name. The collar can be used for connection to a waterproofing or bituminous membrane.
Order No.: G1 421 L
EAN: 8595587422113
Parameters
- Length
- 125 mm
- Width
- 125 mm
- Height
- 178 mm
- Color
- Gray
- Grid type
- GATE
- Material
- polypropylene, stainless steel
- Outlet type
- vertical
- Outlet diameter
- 110
- Flow rate (l/min)
- 38-49
- Adjustable height
- Yes
- Load class
- K3
- Load (kg)
- 300 kg
