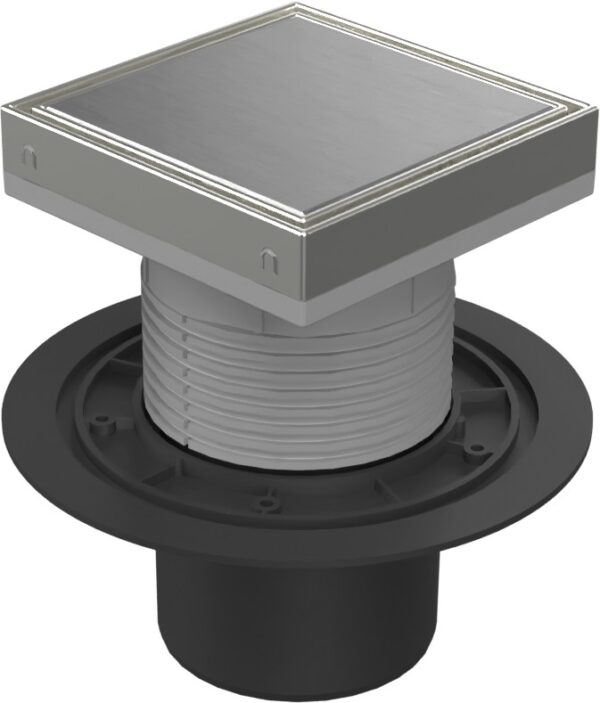

Floor drain with bottom outlet D110, stainless steel frame, STEEL grate 125/1.5 mm
CHUDĚJ floor drains are designed primarily for piping systems inside buildings, where they ensure reliable drainage of wastewater into the public sewer system, a domestic wastewater treatment plant or a septic tank.
They are made of high-quality materials with high resistance to corrosion, mechanical stress and varying water temperatures. The drain body is made of polypropylene, while the stainless steel frame and grate are made of DIN 1.4301 (AISI 304) stainless steel. Whether a stainless steel frame is included is specified in the product name.
The drain is equipped with a strainer for collecting debris, a dry anti-odour flap for outdoor use and a water seal for indoor use. Temperature resistance: up to 90 °C. The drain complies with load class K3 – 300 kg and is marked with the Czech conformity mark CCZ.
Order No.: S 386 A
EAN: 8595587427224
Parameters
- Length
- 125 mm
- Width
- 125 mm
- Height
- 196 mm
- Color
- Gray
- Grid type
- STEEL
- Material
- polypropylene, polystyrene, stainless steel
- Stainless frame
- Yes
- Outlet type
- vertical
- Outlet diameter
- 110
- Flow rate (l/min)
- 32-72
- Turnable waste connection
- No
- Adjustable height
- Yes
- Outdoor use
- Yes
- Load class
- K3
- Load (kg)
- 300 kg
