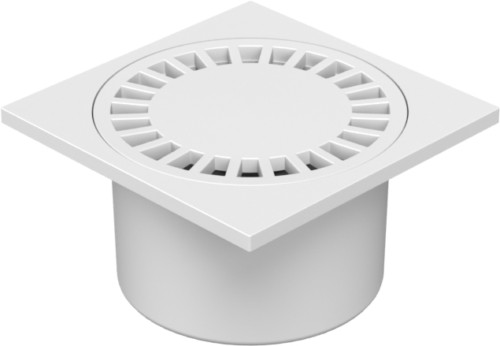

Floor drain with bottom outlet D50, high plastic grate
The drain is designed for use in utility rooms, bathrooms, etc. and is equipped with an anti-odour trap. The drain body and grate are made of polypropylene. It is available in two versions – with a plastic grate and with an all-stainless-steel surface.
Temperature resistance: up to 90 °C. The drain complies with load class K3 – 300 kg and is marked with the Czech conformity mark CCZ.
CHUDĚJ floor drains are designed primarily for piping systems inside buildings, where they ensure reliable drainage of wastewater into the public sewer system, a domestic wastewater treatment plant or a septic tank. They are made of high-quality materials with high resistance to corrosion, mechanical stress and varying water temperatures.
Order No.: 321 P
EAN: 8595587400647

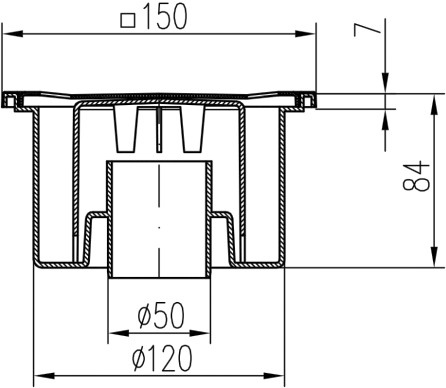

Parameters
- Length
- 150 mm
- Width
- 150 mm
- Height
- 84 mm
- Color
- bílá
- Grid type
- Plastic white
- Material
- polypropylene
- Outlet type
- vertical
- Outlet diameter
- 50
- Flow rate (l/min)
- 48-53
- Load class
- K3
- Load (kg)
- 300 kg
