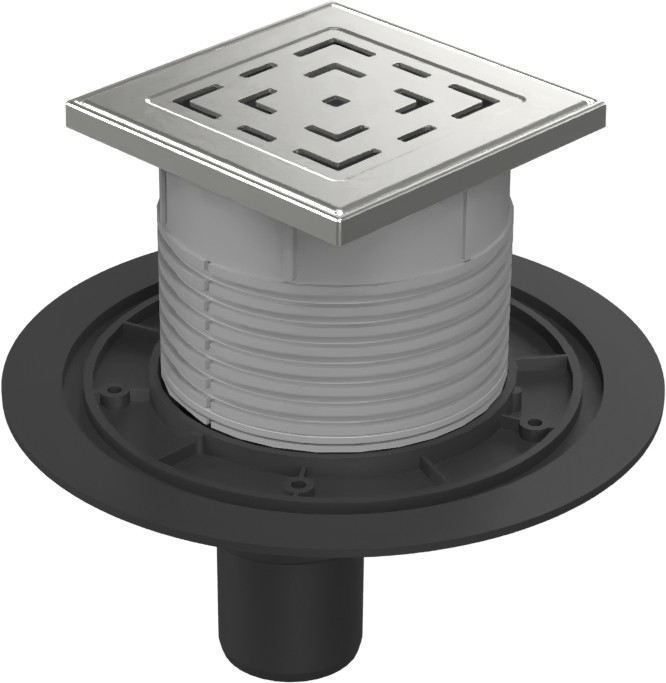

Floor drain with bottom outlet D50, stainless steel grid LABYRINTH

Floor drain with bottom outlet D50, stainless steel grid LABYRINTH

View in BIM catalogue

Order No.: L1 384 A

EAN: 8595587423776

Parameters

Length: 125 mm
Width: 125 mm
Height: 210 mm
Color: Gray
Grid type: LABYRINTH
Material: polypropylene, polystyrene, stainless steel
Outlet type: vertical
Outlet diameter: 50
Flow rate (l/min): 30-70
Turnable waste connection: No
Adjustable height: Yes
Outdoor use: Yes
Load class: K3

Download

Manual Download

Certificate FD_EN Download

Declaration of conformity FD EN Download

Product packaging

Quantity per box: 4

Quantity per palette: 120
