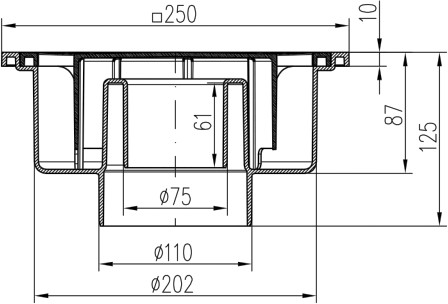

Floor drain with bottom outlet D75/110, 250×250 mm, plastic grate
The drain with an anti-odour trap is made of polypropylene and is designed primarily for indoor use in areas such as utility rooms, garages, warehouses, gardens, courtyards, etc. Temperature resistance: up to 90 °C. The drain complies with load class K3 – 300 kg and is marked with the Czech conformity mark CCZ.
D75 is intended for an internal pipe connection, while D110 is intended for an external pipe connection. HT and KG pipes can be connected to the product, including an elbow socket.
CHUDĚJ floor drains are designed primarily for piping systems inside buildings, where they ensure reliable drainage of wastewater into the public sewer system, a domestic wastewater treatment plant or a septic tank. They are made of high-quality materials with high resistance to mechanical stress and varying water temperatures.
Order No.: 221 P
EAN: 8595587415900
Parameters
- Length
- 250 mm
- Width
- 250 mm
- Height
- 125 mm
- Color
- Gray
- Grid type
- Plastová šedá
- Material
- polypropylene
- Outlet type
- vertical
- Outlet diameter
- 110, 75
- Flow rate (l/min)
- 108
- Turnable waste connection
- No
- Load class
- K3
- Load (kg)
- 300 kg
