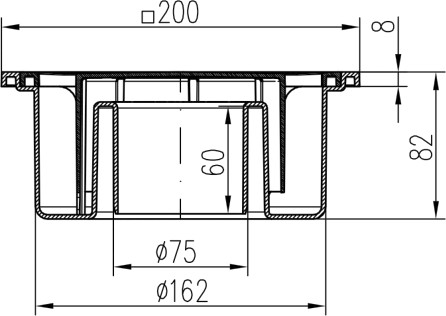

Floor drain with bottom outlet D75, 200×200 mm, plastic grate

The drain with an anti-odour trap is made of polypropylene and is designed primarily for indoor use in areas such as utility rooms, garages, warehouses, gardens, courtyards, etc. Temperature resistance: up to 90 °C. The drain complies with load class K3 – 300 kg and is marked with the Czech conformity mark CCZ.

HT and KG pipes can be connected to the product, including a complete elbow.

CHUDĚJ floor drains are designed primarily for piping systems inside buildings, where they ensure reliable drainage of wastewater into the public sewer system, a domestic wastewater treatment plant or a septic tank. They are made of high-quality materials with high resistance to mechanical stress and varying water temperatures.

View in BIM catalogue

Order No.: 222 P

EAN: 8595587415894

Parameters

Length
200 mm
Width
200 mm
Height
82 mm
Color
Gray
Grid type
Plastová šedá
Material
polypropylene
Outlet type
vertical
Outlet diameter
75
Flow rate (l/min)
67
Turnable waste connection
No
Load class
K3
Load (kg)
300 kg
