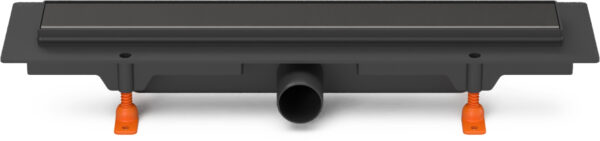

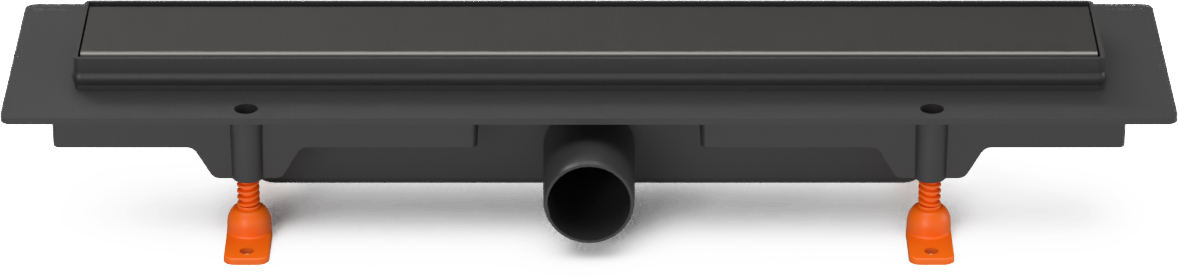

Linear floor drain Black 350 mm, side outlet D40, plastic frame, black KLASIK/FLOOR grate
CHUDĚJ linear floor drains provide reliable drainage for shower areas and other spaces.
The drain body is made of polypropylene. It features a unique anti-odour system that prevents unpleasant odours from flowing back from the waste pipe, strainers for collecting debris and height-adjustable legs for easier positioning during installation. The drain is characterised by its low installation height and high flow rate.
The stainless-steel grates are made of high-quality DIN 1.4301 (AISI 304) stainless steel and comply with load class K3 – 300 kg. The black version includes a stainless steel grate with a baked-on powder-coated finish. The KLASIK/FLOOR grate allows a tile to be inserted and is therefore reversible.
The package also includes a 1000×80 mm self-adhesive waterproofing membrane.
Order No.: CH 350 KC
EAN: 8595587432631
Parameters
- Length
- 350 mm
- Width
- 63 mm
- Height
- 65 mm
- Frame height
- 15 mm
- Color
- Black
- Grid type
- KLASIK/FLOOR black
- Material
- polypropylene, polystyrene, stainless steel
- Outlet type
- horizontal
- Outlet diameter
- 40
- Flow rate (l/min)
- 30-38
- Telescopic legs
- Yes
- Load class
- K3
- Load (kg)
- 300
