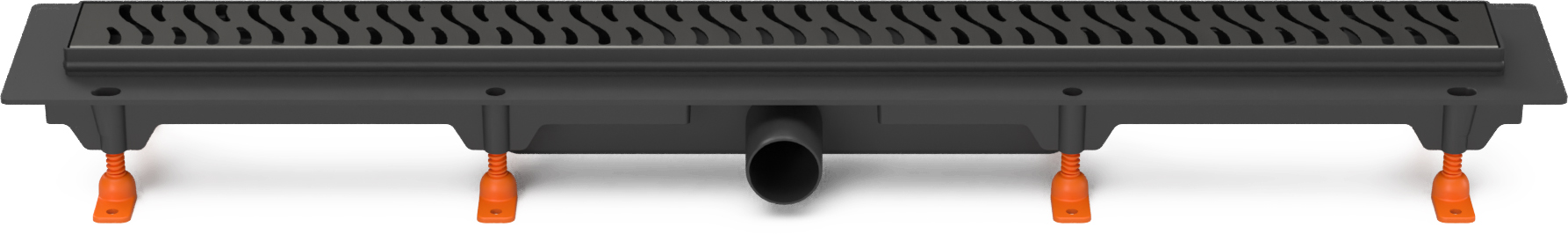

Linear floor drain Black 850 mm, side outlet D40, plastic frame, black HARMONY grate
CHUDĚJ linear floor drains provide reliable drainage for shower areas and other spaces.
The drain body is made of polypropylene. It features a unique anti-odour system that prevents unpleasant odours from flowing back from the waste pipe, strainers for collecting debris and height-adjustable legs for easier positioning during installation. The drain is characterised by its low installation height and high flow rate.
The stainless-steel grates are made of high-quality DIN 1.4301 (AISI 304) stainless steel and comply with load class K3 – 300 kg. The black version includes a stainless steel grate with a baked-on powder-coated finish. The KLASIK/FLOOR grate allows a tile to be inserted and is therefore reversible.
The package also includes a 1000×80 mm self-adhesive waterproofing membrane.
Order No.: CH 850 HC
EAN: 8595587427071
Parameters
- Length
- 850 mm
- Width
- 63 mm
- Height
- 65 mm
- Frame height
- 15 mm
- Color
- Black
- Grid type
- HARMONY black
- Material
- polypropylene, polystyrene, stainless steel
- Outlet type
- horizontal
- Outlet diameter
- 40
- Flow rate (l/min)
- 30-38
- Telescopic legs
- Yes
- Load class
- K3
- Load (kg)
- 300
