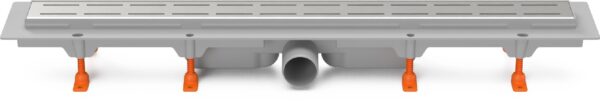

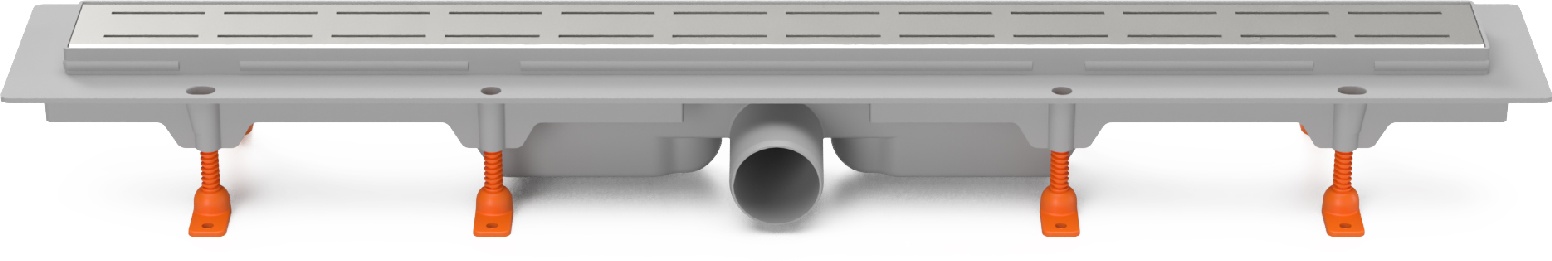

Linear. floor drain, side outlet D50, 950 mm, Line grid matt
Ord. number:
CH 950/50 L 1
Parameters
- Length
- 950 mm
- Width
- 63 mm
- Frame height
- 15 mm
- Grid type
- LINE mate
- Material
- polypropylene, stainless steel
- Telescopic legs
- Yes
- Outlet diameter
- 50
- Outlet type
- horizontal
- Flow rate (l/min)
- 42-52
- Load (kg)
- 300
- Load class
- K3
