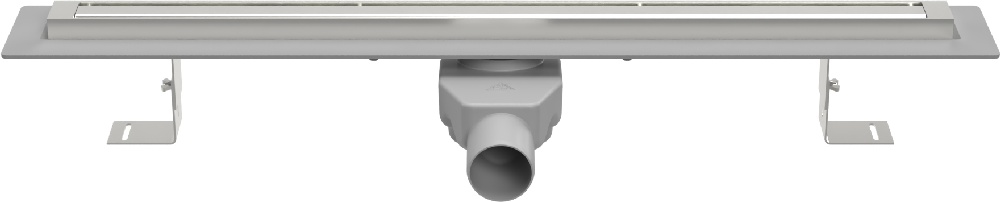

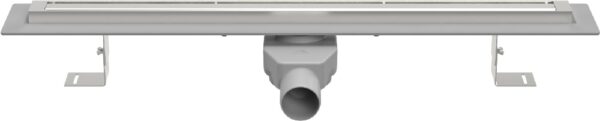

Linear floor drain Slim Line Premium 1100 mm, swivel siphon D50, SLIM LINE grate
The Slim Line linear floor drain features a narrow, discreet design. Its tile-insert grate allows the drain to blend seamlessly into the floor, creating a clean, minimalist look in bathrooms and other spaces.
The drain body is made of polypropylene. It is supplied with a swivel D50 anti-odour siphon that prevents unpleasant odours from entering through the waste pipe, a debris strainer and height-adjustable legs for easier levelling during installation.
The stainless-steel frame and grate are made of high-quality DIN 1.4301 (AISI 304) stainless steel. Load class K3 – 300 kg.
The package also includes a 1000×80 mm self-adhesive waterproofing membrane.
Order No.: CH 1100 SLP
EAN: 8595587442142
Parameters
- Length
- 1100 mm
- Width
- 35 mm
- Height
- 83 mm
- Frame height
- 23 mm
- Color
- Gray
- Grid type
- SLIM LINE PREMIUN
- Material
- polypropylene, stainless steel
- Stainless frame
- No
- Outlet type
- horizontal
- Outlet diameter
- 50
- Flow rate (l/min)
- 45
- Turnable waste connection
- Yes
- Adjustable height
- Yes
- Telescopic legs
- Yes
- Load class
- K3
- Load (kg)
- 300
