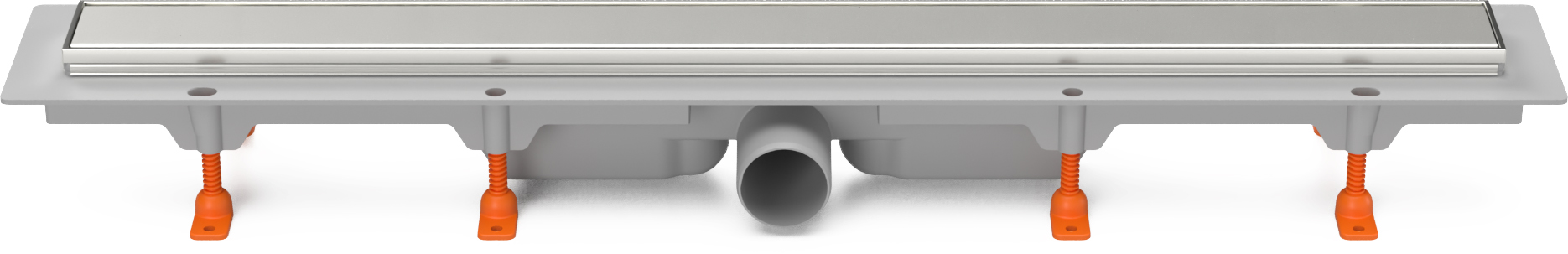

Linear floor drain 650 mm, side outlet D50, SS frame, KLASIK/FLOOR matt grate
CHUDĚJ linear floor drains provide reliable drainage for shower areas and other spaces.
The drain body is made of polypropylene. It features a unique anti-odour system that prevents unpleasant odours from flowing back from the waste pipe, strainers for collecting debris and height-adjustable legs for easier positioning during installation. The drain is characterised by its low installation height and high flow rate.
The stainless-steel grates are made of high-quality DIN 1.4301 (AISI 304) stainless steel and comply with load class K3 – 300 kg. The KLASIK/FLOOR grate allows a tile to be inserted and is therefore reversible.
The package also includes a 1000×80 mm self-adhesive waterproofing membrane.
Order No.: CH 650/50 KN 1
EAN: 8595587418185
Parameters
- Length
- 650 mm
- Width
- 63 mm
- Height
- 80 mm
- Frame height
- 15 mm
- Color
- Gray
- Grid type
- KLASIK/FLOOR mate
- Material
- polypropylene, stainless steel
- Stainless frame
- Yes
- Outlet type
- horizontal
- Outlet diameter
- 50
- Flow rate (l/min)
- 44-52
- Telescopic legs
- Yes
- Load class
- K3
- Load (kg)
- 300
