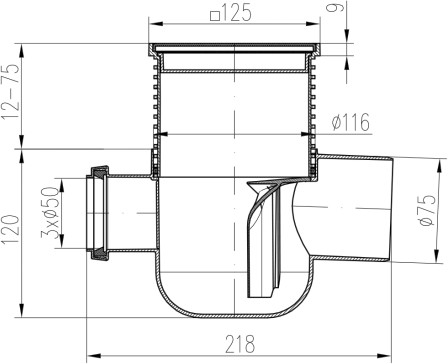

Multi-inlet floor drain with side outlet D75, GATE grate 125/1.5 mm
CHUDĚJ floor drains are designed primarily for piping systems inside buildings, where they ensure reliable drainage of wastewater into the public sewer system, a domestic wastewater treatment plant or a septic tank.
They are made of high-quality materials with high resistance to corrosion, mechanical stress and varying water temperatures. The drain body is made of polypropylene, while the frame and grate are made of DIN 1.4301 (AISI 304) stainless steel.
The drain allows connection of multiple waste pipes through three D50 inlets. The drain body is equipped with an anti-odour water-seal baffle and a strainer for collecting debris. It is designed for indoor use. Temperature resistance is up to 90 °C. The drain complies with load class K3 – 300 kg and is marked with the Czech conformity mark CCZ.
The drain is available with either a plastic or stainless steel frame. Whether a stainless steel frame is included is specified in the product name. If a waterproofing connection is required, the drain can be combined with a collar for waterproofing (item no. 390).
Order No.: G1 801
EAN: 8595587423615
Parameters
- Length
- 125 mm
- Width
- 125 mm
- Height
- 195 mm
- Color
- Gray
- Grid type
- GATE
- Material
- polypropylene, polystyrene, stainless steel
- Outlet type
- horizontal cross
- Outlet diameter
- 75
- Flow rate (l/min)
- 38-49
- Waste connection diameter
- 50 mm
- Turnable waste connection
- Yes
- Adjustable height
- Yes
- Load class
- K3
- Load (kg)
- 300 kg
