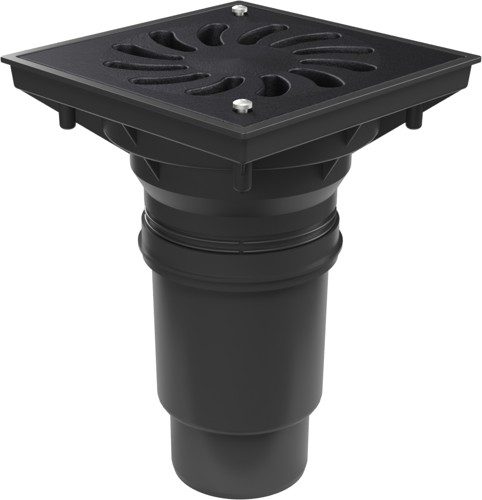

Street drain, bottom outlet D110, water seal, without collar, SUN cast iron grate 250×250 mm, lock
CHUDĚJ street drains are designed to drain rainwater and surface water from roads, pavements, car parks and other paved areas into the sewer system. They help protect property and infrastructure from damage caused by excessive water accumulation.
They are available with cast iron, stainless steel or plastic grates. A removable basket for collecting debris is included.
Each drain includes an anti-odour system preventing backflow of odours from the sewer. Depending on the version, the drain is equipped with a dry anti-odour flap for outdoor use, a water seal for indoor use or a NEPTUN float, also designed for indoor use. Temperature resistance is up to 90 °C, or up to 70 °C with the NEPTUN float.
The drain body is made of UV-stabilised polypropylene. The grate is made of cast iron DIN 1691 and coated with thermoset paint. The SUN cast iron grate complies with load class B125 – 12,500 kg and is available with or without an anti-theft lock (security screws).
The drains allow connection of waterproofing and are marked with the Czech conformity mark CCZ.
Order No.: 731 Vz
EAN: 8595587425312
Parameters
- Length
- 245 mm
- Width
- 245 mm
- Height
- 336 mm
- Color
- Black
- Grid type
- Litina
- Material
- cast iron, polypropylene, polystyrene
- Outlet type
- vertical
- Outlet diameter
- 110
- Flow rate (l/min)
- 112-125
- Adjustable height
- Yes
- Outdoor use
- Yes
- Load class
- M125
- Load (kg)
- 12500 kg
