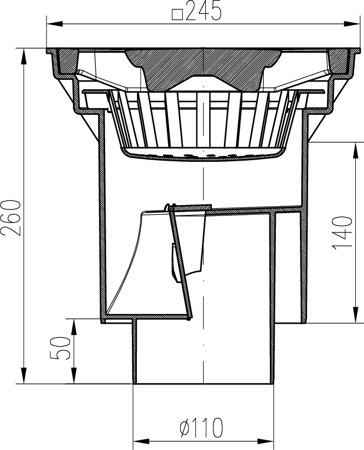

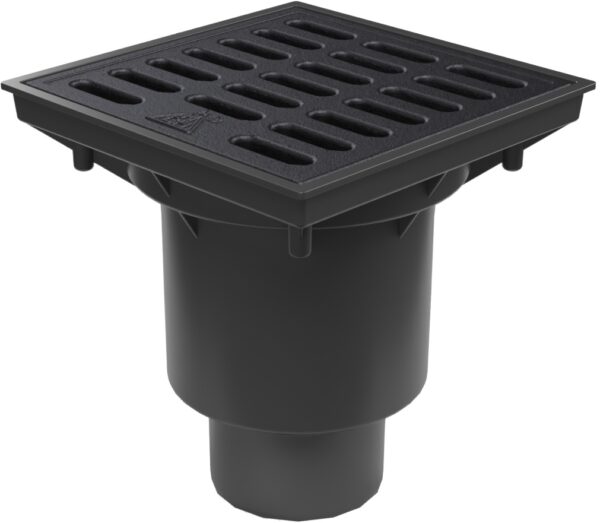

Street drain with bottom outlet D160/110, dry flap, SPACE cast iron grate 250×250 mm
CHUDĚJ street drains are designed to drain rainwater and surface water from roads, pavements, car parks and other paved areas into the sewer system. They help protect property and infrastructure from damage caused by excessive water accumulation.
They are available with cast iron, stainless steel or plastic grates. A removable basket for collecting debris is included. D160/110 drains are equipped with a dry anti-odour flap that prevents backflow of odours from the sewer. They are designed for outdoor use. Temperature resistance: up to 90 °C. Flow rate: 280 l/min.
The drain body is made of UV-stabilised polypropylene. The grate is made of cast iron DIN 1691 and coated with thermoset paint. The SPACE cast iron grate complies with load class L15 – 1,500 kg, and its open design reduces splashback, helping protect the façade and surrounding surfaces from dirt. The drains are marked with the Czech conformity mark CCZ.
Order No.: 3281
EAN: 8595587446645
Parameters
- Length
- 245 mm
- Width
- 245 mm
- Height
- 260 mm
- Color
- Black
- Grid type
- Litina
- Material
- cast iron, polypropylene, polystyrene
- Outlet type
- vertical
- Outlet diameter
- 110, 160
- Flow rate (l/min)
- 250
- Outdoor use
- Yes
- Load class
- R50
- Load (kg)
- 5000 kg
