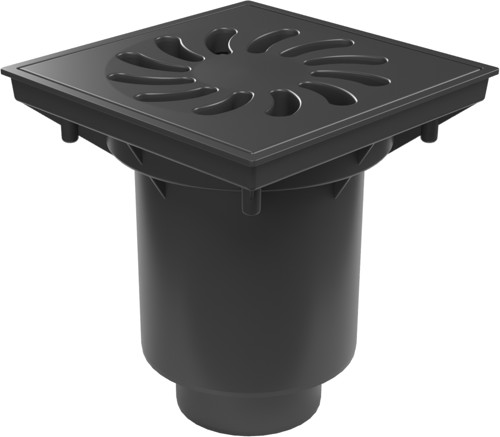

Street drain with bottom outlet D160/110, dry flap, SUN plastic grate 250×250 mm
CHUDĚJ street drains are designed to drain rainwater and surface water from roads, pavements, car parks and other paved areas into the sewer system. They help protect property and infrastructure from damage caused by excessive water accumulation.
They are available with cast iron, stainless steel or plastic grates. A removable basket for collecting debris is included. D160/110 drains are equipped with a dry anti-odour flap that prevents backflow of odours from the sewer. They are designed for outdoor use. Temperature resistance: up to 90 °C. Flow rate: 280 l/min.
The drain body and grate are made of UV-stabilised polypropylene. The SUN plastic grate complies with load class L15 – 1,500 kg and is available with or without an anti-theft lock (security screws). The drains are marked with the Czech conformity mark CCZ.
Order No.: 328 P
EAN: 8595587405437
Parameters
- Length
- 245 mm
- Width
- 245 mm
- Height
- 260 mm
- Color
- Black
- Grid type
- Plastová
- Material
- polypropylene, polystyrene
- Outlet type
- vertical
- Outlet diameter
- 110, 160
- Flow rate (l/min)
- 250
- Outdoor use
- Yes
- Load class
- L15
- Load (kg)
- 1500 kg
