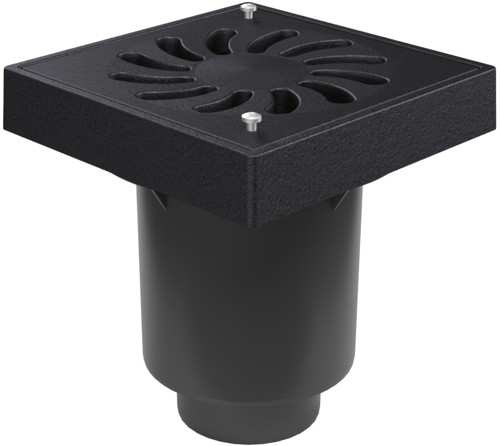

Street drain, bottom outlet D160/110, dry flap, cast iron frame and SUN grate 250×250 mm with lock
CHUDĚJ street drains are designed to drain rainwater and surface water from roads, pavements, car parks and other paved areas into the sewer system. They help protect property and infrastructure from damage caused by excessive water accumulation.
D160/110 street drains with a cast iron frame are available with either a cast iron or plastic grate and are suitable for installation in areas in direct contact with asphalt surfaces.
A removable basket for collecting debris is included. The drains are equipped with a dry anti-odour flap that prevents backflow of odours from the sewer. Temperature resistance: up to 90 °C. Flow rate: 280 l/min.
The drain body is made of UV-stabilised polypropylene. The grate and frame are made of cast iron DIN 1691 and coated with thermoset paint. The SUN cast iron grate complies with load class B125 – 12,500 kg and is available with or without an anti-theft lock (security screws). The drains are marked with the Czech conformity mark CCZ.
Order No.: M 328 z
EAN: 8595587430743
Parameters
- Length
- 250 mm
- Width
- 250 mm
- Height
- 270 mm
- Color
- Black
- Grid type
- Litina
- Material
- cast iron, polypropylene, polystyrene
- Outlet type
- vertical
- Outlet diameter
- 110, 160
- Flow rate (l/min)
- 250
- Outdoor use
- Yes
- Load class
- M125
- Load (kg)
- 12500 kg
