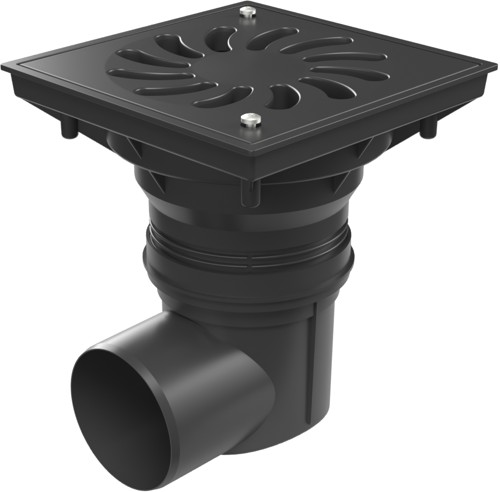

Street drain with side outlet D110, dry flap, without collar, SUN plastic grate 250×250 mm with lock
CHUDĚJ street drains are designed to drain rainwater and surface water from roads, pavements, car parks and other paved areas into the sewer system. They help protect property and infrastructure from damage caused by excessive water accumulation.
They are available with cast iron, stainless steel or plastic grates. A removable basket for collecting debris is included.
Each drain includes an anti-odour system preventing backflow of odours from the sewer. Depending on the version, the drain is equipped with a dry anti-odour flap for outdoor use, a water seal for indoor use or a NEPTUN float, also designed for indoor use. Temperature resistance is up to 90 °C, or up to 70 °C with the NEPTUN float.
The drain body and grate are made of UV-stabilised polypropylene. The SUN plastic grate complies with load class L15 – 1,500 kg and is available with or without an anti-theft lock (security screws).
The drains allow connection of waterproofing and are marked with the Czech conformity mark CCZ.
Order No.: 330 Sz
EAN: 8595587405406
Parameters
- Length
- 245 mm
- Width
- 245 mm
- Height
- 280 mm
- Color
- Black
- Grid type
- Plastová
- Material
- polypropylene, polystyrene
- Outlet type
- horizontal
- Outlet diameter
- 110
- Flow rate (l/min)
- 190-210
- Turnable waste connection
- Yes
- Adjustable height
- Yes
- Outdoor use
- Yes
- Load class
- L15
- Load (kg)
- 1500 kg
